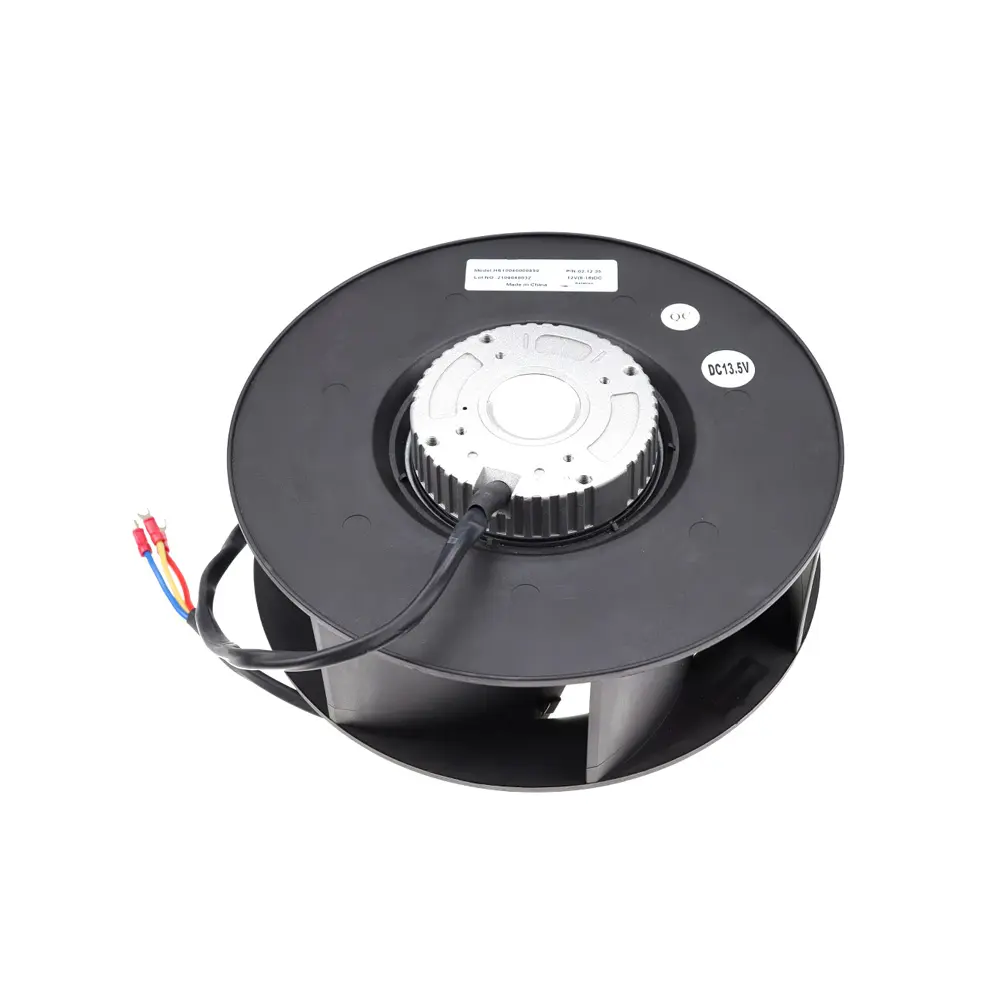

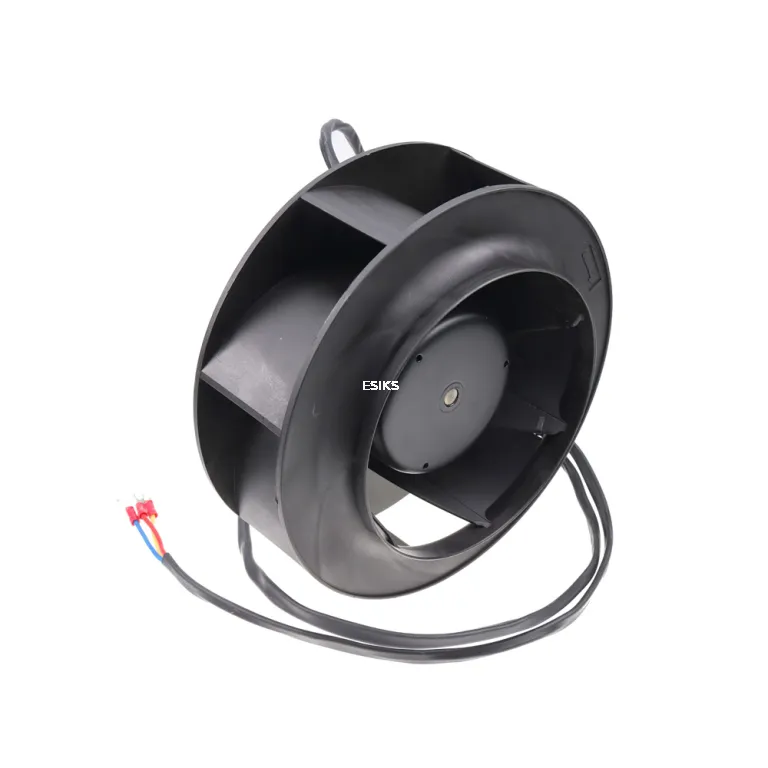

12V Evaporator Fan Motor 78-1886 78-1233 for Thermo King T-1000 T-1200R SB Spectrum/SL/SLX

12V Evaporator Fan Motor 78-1886 78-1233 for Thermo King T-1000 T-1200R SB Spectrum/SL/SLX

Part Name:
12V Evaporator Fan Motor

Part Number:
78-1886, 781886, 2E34511G01, 78-1233, 781233, 781554, 78-1554 2C44095G01, 78-1362, 781362, 1E11771G02, 78-1554, 781554, 1E11771G04 EBN

Specification:
13.5 volt Backwards Curved Blade Fan (is designed to work from 9 to 16VDC operation)
Maximum Fan CFM: 588 CFM (1000m3/h) @ 6.8 Amp at approx. 2150RPM
Variable speed: minimum speed (+1.5V) to full speed (+13.5VDC) when signal is input to yellow wire
Lock-Rotor protection
Fan Diameter (in): 8.66 in. (220mm)
Height (in): 3.89 in. (99mm)
Number of Blades: 11 blades
Blade Material: Plastic

Applicable:
TK S2 & S3 TRUCK AND TRAILER, SL/ SLX / SPECTRUM / T-SERIES / UT-RANGE

See Detail:
MD-200 MT
MD-MT
RD-MT
SLX Spectrum
SLXe Spectrum
SLXe Spectrum Whisper
SPECTRUM DE 2 & 3
SPECTRUM S-II Tier 2 Engine
SPECTRUM SL Multi-Temp
SPECTRUM SL Tier 2 Engine
SPECTRUM Super-II TCI
SPECTRUM TS met TK3'7'6
SPECTRUM TS-500 met TK3'7'6
ST-CR & ST-CR MT
T-1000 Spectrum
T-1000R
T-1200R Spectrum
T-800R Spectrum
UT-1200
UT-1200X met TK3'7'6
UT-800
UTS
