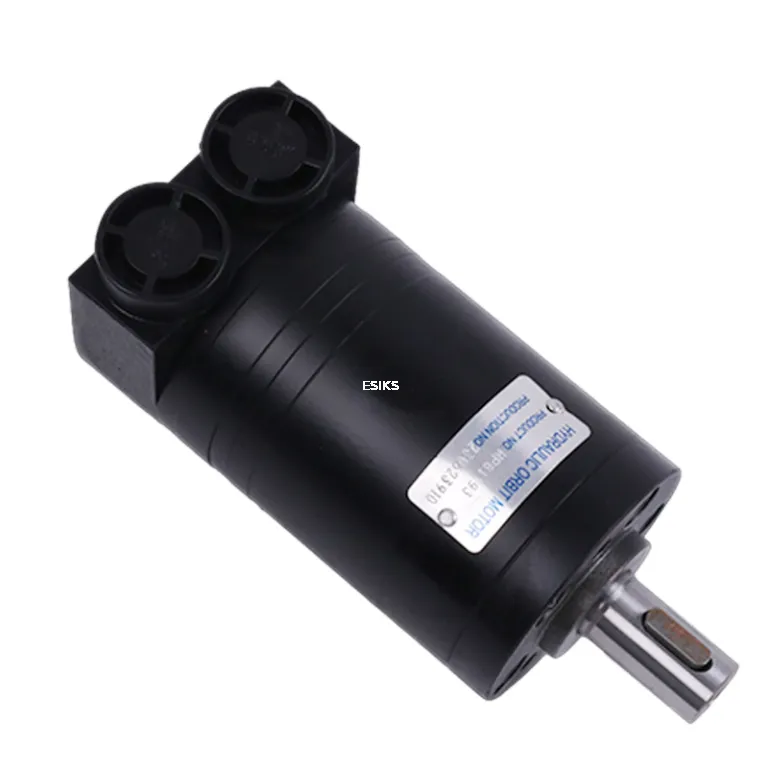

16mm 3/8 Bsp Hydraulic Motor OMM20 151G0005 replace Danfoss

Name: 16mm 3/8 Bsp Hydraulic Motor OMM20 151G0005 replace Danfoss
Brand: Store
SKU: ESY54195
Price: 165 USD
Availability: InStock

0.0(0 Reviews)Add Your Review

$165.00

PRO Program members can receive tiered savings on this line—up to 20% more off for qualifying accounts.

Shipping estimate & delivery timing

Shipping to

SKU: ESY54195

In Stock

Quantity:

🎁

Share & Save!

Share this product on social media and get an exclusive discount code!

Click any platform below to share this product. After sharing, you'll receive a discount code!

Trusted by Parts Buyers Worldwide

Built to support repair shops, fleets, and equipment owners with dependable parts sourcing and responsive service.

1-Year Parts Warranty

Qualifying new parts include 1-year coverage. Review the Warranty Policy section for coverage details, claim steps, and exclusions.

90-Day Return Window

Eligible orders may qualify for returns within 90 days. See the Easy Return Policy section for conditions and next steps.

Responsive Parts Support

Send a question through Ask a Product Question or the contact form. Our team reviews requests on business days and follows up as quickly as possible.

16mm 3/8 Bsp Hydraulic Motor OMM20 151G0005 for DanfossReplace?Part?Number:151G0005, BMM-20-MAE, OMM20-151G0005, OMM20 151G0005, OMM20151G0005, BMM20MAESpecification:Cylindrical output shaft 16mm with 3/8 BSP side portsOMM 20 Low Speed High Torque motor, Geometric Displacement 19.9 cm3Motor size: 20Geometric displacement( cm^3[in]): 19.9[1.22]Max speed cont: 1000 rpmMax speed int: 1250 rpmMax torque cont(Nm[lbf in]): 25[220]Max torque int(Nm[lbf in]): 35[310]Max output power cont(kW[hp]): 2.4[3.2]Max output power int(kW[hp]): 3.2[4.3]Max pressure drop cont(bar[psi]): 100[1450]Max pressure drop int(bar[psi]): 140[2030]Max pressure drop peak(bar[psi]): 200[2900]Max oil flow cont(l/min[gpm]): 20[5.3]Max oil flow int(l/min[gpm]): 25[6.6]Max starting pressure with unloaded shaft(bar[psi]): 4[60]Min starting torque at max press drop cont(Nm[lbf in]): 21[185]Min starting torque at max press drop int(Nm[lbf in]): 29[255]Max inlet pressure cont(bar[psi]): 140[2030]Max inlet pressure int(bar[psi]): 175[2540]Max inlet pressure peak(bar[psi]): 225[3260]Max return pressure with drain line cont(bar[psi]): 140[2030]Max return pressure with drain line int(bar[psi]): 175[2540]Max return pressure with drain line peak(bar[psi]): 225[3260]Application:Fit for Danfoss
