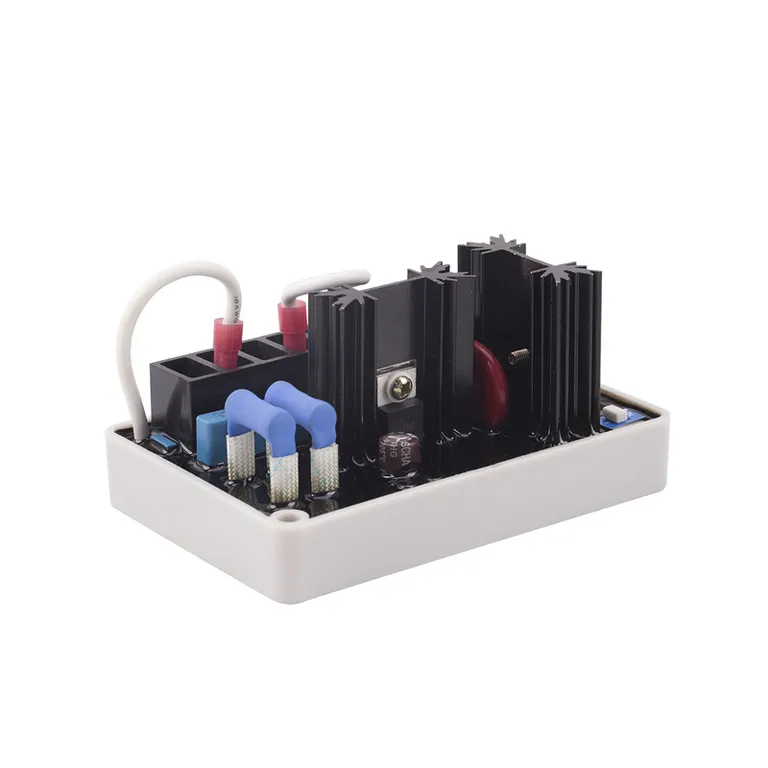

1PC Self Excited Automatic Voltage Regulator AVC63-4D for Generator Genset

1PC Self Excited Automatic Voltage Regulator AVC63-4D for Generator Genset

Part Number:
AVC63-4D,AVC634D

SPECIFICATIONS (continued):
VOLTAGE BUILDUP:
Internal provisions for automatic
voltage buildup from generator residual voltages as low
as 6 Vac.
TERMINATIONS:
1/4?ast-On?Terminals.
POWER DISSIPATION:
8 Watts maximum.
OPERATING TEMPERATURE:
-40C (-40F) to
+60C (+140F).
STORAGE TEMPERATURE:
-65C (-85F) to +85C
(+185F).
VIBRATION:
?Withstands 1.3 Gs at 5 to 26 Hz; 0.036?/strong>
double amplitude at 27 to 52 Hz; and 5 Gs at 52 to
1000 Hz.
SHOCK:
Withstands up to 20 Gs in each of three
mutually perpendicular axes.
ACCESSORY
Remote Adjustment Rheostat: 1000 ohm, 2W rheostat
with locking slotted shaft, Basler Electric P/N 17727.
DC OUTPUT POWER:
4 Adc at 63 Vdc maximum
continuous, 7 Adc at 100 Vdc one minute forcing.
(Forcing with 240 Vac nominal input).
EXCITER FIELD DC RESISTANCE:
?15 ohms mini-
mum; 100 ohms maximum.
AC SENSING/POWER INPUT:
Operating range:
190-240 Vac single phase 10%, 50/60 Hz 10%.
Burden? 500VA.
VOLTAGE? ADJUST? RANGE: ?
171-264? Vac.
REGULATION ACCURACY:
Better than 1.0%
no load to full load.
RESPONSE TIME:
Less than 1.5 cycles for 5%
change in sensing voltage.
