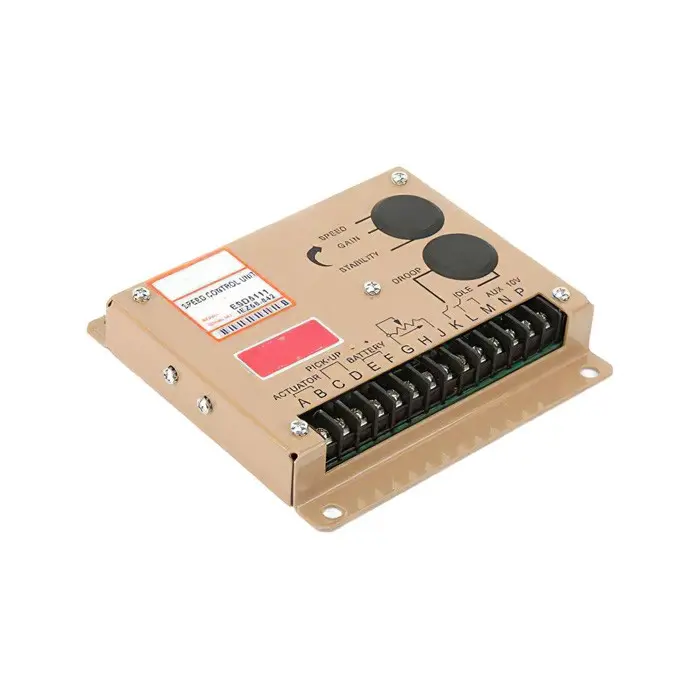

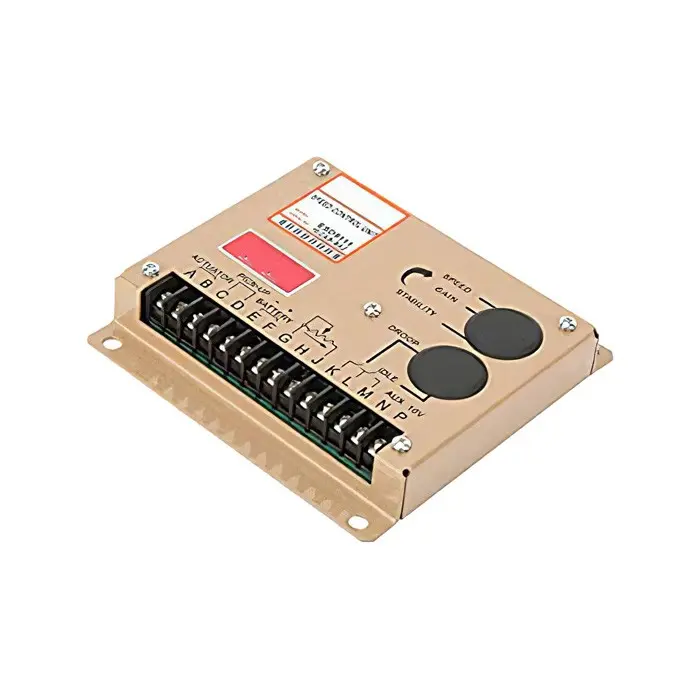

1PCS Electronic Engine Speed Controller GAC Governor ESD5111 Generator Parts

1PCS Electronic Engine Speed Controller GAC Governor ESD5111 Generator Parts

Part Number:
ESD5111,8017472

See Details:
Specification
Isochronous Operation/Steady State Stability
0.25% or better ?
Speed Range/Governor
1K-7.5K Hz continuous
Speed Drift with Temperature
1% Maximun
IDLE Adjustment
160 20Hz ~ 60% of set speed
Droop adjustment Min.(K-L Jumpered)
15Hz. 6Hz. per 1.0 A change ?
Droop adjustment Max.(K-L Jumpered)
400Hz. 75Hz. per 1.0 A change
Droop Adj. Max. (K-L Jumpered)
875Hz., 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered)
15Hz., 6Hz. per 1.0 A change
Speed Trim Range
200Hz.
Remote Variable Speed Range
500 -7.5Hz. or any part thereof
Terminal Sensitivity
J: 100Hz., 15Hz/Volt @ 5.0 K Impedance
L: 735Hz., 60Hz/Volt @ 65 K Impedance
N: 148Hz., 10Hz/Volt @ 1Meg. Impedance
P: 10V DC Supply @ 20ma Max.
Speed Switch Adjustment Range
1000-10000Hz.
Environmental
Ambient Operating Temperature Range
-40c to +85c
Relative Humidity
up to 95%
Storage Temperature
-55c ~ 90c
Shock
20-100HZ 500mm/Sec.
Input Power
Supply
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity
Negative Ground(Case Isolated)
Power Consumption
50mA continuous plus actuator current
Actuator Current Range @ 25c-(Inductive Load)
Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal
0.5-120 V RMS
Speed Switch Relay Contacts(N.O.and N.C.)
10Amp
