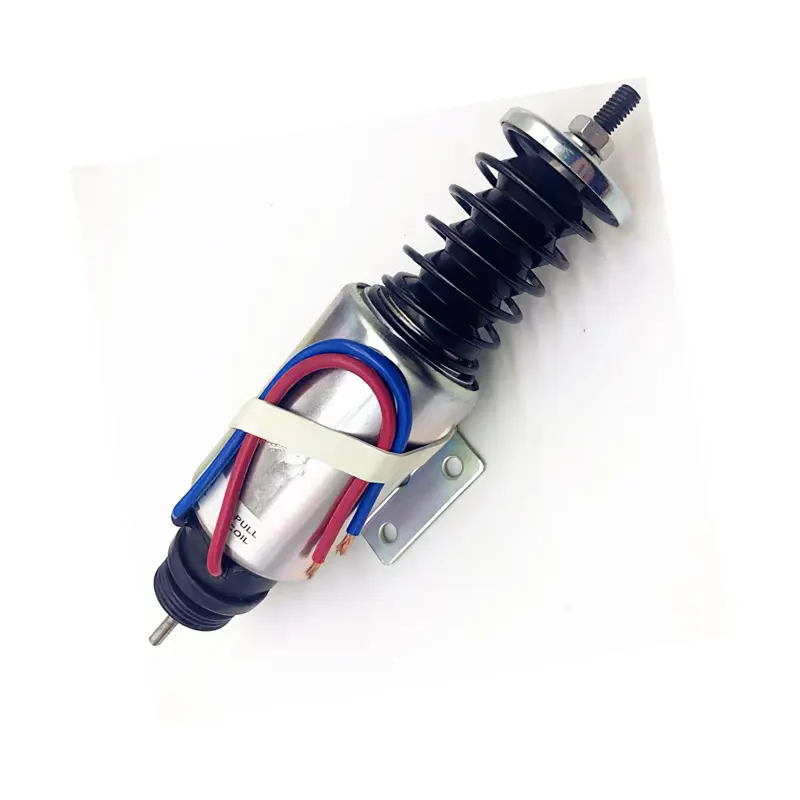

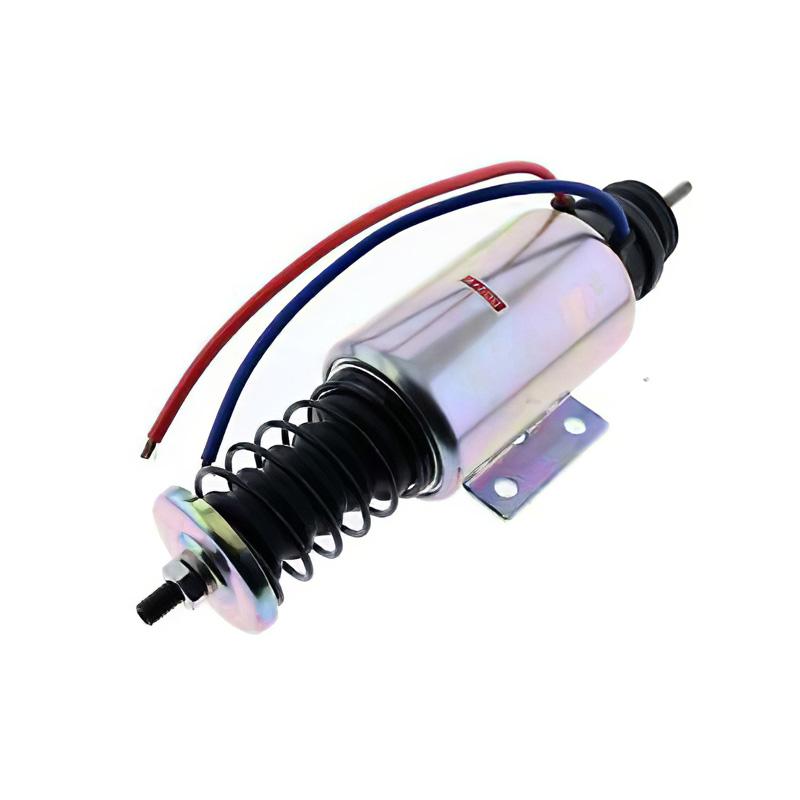

24V Solenoid ES622AM3TG for Elettrostart

24V Solenoid ES622AM3TG for Elettrostart

Note:
This solenoid can switch off the pull coil; no external 'control' is necessary.

Part Name:
24v shutdown solenoid
24v externally switched Solenoid
24v shut down Solenoid
24 Volt shutdown solenoid
24 Volt externally switched Solenoid
24 Volt shut down Solenoid
Shutdown Solenoid
Shutdown Switch
Shutdown Valve
Shut Off Solenoid
Shut Off Switch
Shut Off Valve
Stop Solenoid
Stop Switch
Stop Valve
Solenoid

Part Number:
ES622AM3TG

See Details:
Voltage 24, Switch Internal, Coil commander w/, Plunger Internal, Remarks This solenoid can switch off the pull coil, and no external 'control' is necessary., A/pull 20, A/hold 0.3, Pull rating 98N at 32 mm, Hold rating 245N, Return spring 45N
Electrical specifications:
Voltage 24
A/pull 20
A/hold 0.3
Physical specifications:
Switch Internal
Coil commander w/
Plunger Internal
Pull rating 98N at 32 mm
Hold rating 245N
Return spring 45N

Applications:
for Elettrostart
