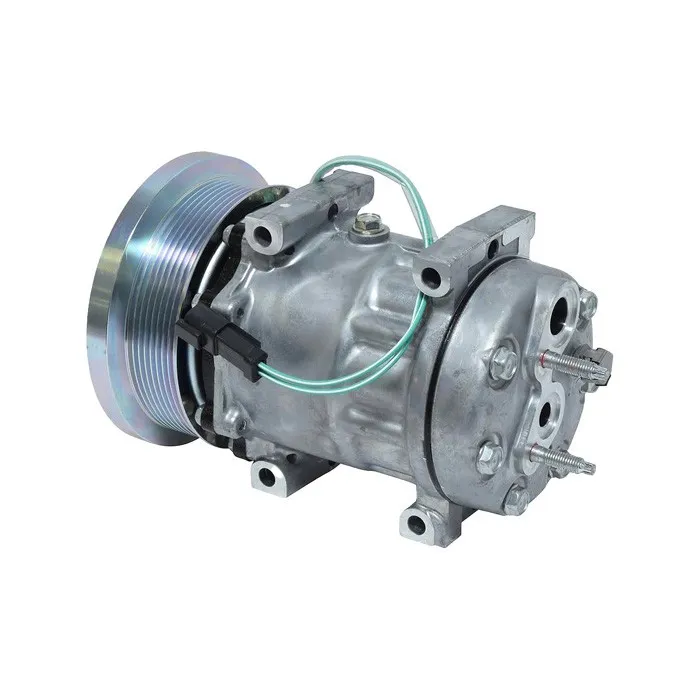

SD7H15 A/C Compressor 320-1291 for Caterpillar CAT Excavator M316F MH3022 MH3024 M320F M318F M314F M322F Motor Grader 12M2 160M3 12M3
Type:
A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor
Replace Part Number:
320-1291, 3201291, CA3201291
Specification:
Compressor Family: SD7H15
Style: Enhanced Sealed Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: 4095
Port Angle: Horizontal
Head Port Style: Pad
Clutch Diameter: 133 mm and 1/4 inches
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 24
Fit for Caterpillar CAT Engine:
C27, C32, C6.6, C7.1
Applications:
Fit for follwing models:
Caterpillar CAT ARTICULATED TRUCK:730C, 735B, 740B
Caterpillar CAT EJECTOR TRUCK:730C, 740B
Caterpillar CAT KNUCKLEBOOM LOADER:2384C, 2484C, 559C, 579C
Caterpillar CAT LANDFILL COMPACTOR:826K, 836K
Caterpillar CAT MOTOR GRADER:120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M 3 AWD, 160M 2, 160M 3, 160M 3 AWD
Caterpillar CAT PNEUMATIC COMPACTOR: CW-34
Caterpillar CAT SITE PREP TRACTOR:586C
Caterpillar CAT SOIL COMPACTOR:825K
Caterpillar CAT TRACK-TYPE TRACTOR:D6K2, D6K2 LGP, D6N LGP, D6N OEM
Caterpillar CAT TRUCK: 770G, 770G OEM, 772G, 772G OEM, 773G, 773G LRC, 773G OEM, 775G, 775G LRC, 775G OEM, 777G
Caterpillar CAT VIBRATORY COMPACTOR:CP-54B, CP-68B, CP-74B, CS-54B, CS-56B, CS-64B, CS-66B, CS-68B, CS-74B, CS-76B, CS-78B
Caterpillar CAT WHEEL DOZER:824K, 834K
Caterpillar CAT WHEEL FELLER BUNCHER:2470C, 2570C, 2670C, 553C, 563C, 573C
Caterpillar CAT WHEEL LOADER:924K, 930K, 938K, 950K, 962K, 980K, 980K HLG, 980M, 982M, 988K
Caterpillar CAT WHEEL SKIDDER:525D, 535D, 545D, 555D
Caterpillar CAT WHEEL TRACTOR:621H, 623H, 627H
Caterpillar CAT WHEEL TRACTOR-SCRAPER:621K, 623K, 623K LRC, 627K, 627K LRC
See Details:
CS56B,CP56B,CS68B,CP68B Vibratory Soil Compactor M4M00001-UP (MACHINE) POWERED BY C6.6 Engine
CW34 Pneumatic Compactor TLJ00001-UP (MACHINE) POWERED BY C4.4 Engine
CS56B CP56B Soil Compactor L8H00001-UP (MACHINE) POWERED BY C4.4 Engine
CS68B CP68B Vibratory Soil Compactor LCF00001-UP (MACHINE) POWERED BY C4.4 Engine
CS74B CP74B Soil Compactor L7B00001-UP (MACHINE) POWERED BY C4.4 Engine
CS78B Vibratory Soil Compactor L8C00001-UP (MACHINE) POWERED BY C4.4 Engine
CS54B CP54B Vibratory Soil Compactor CPX00001-UP (MACHINE) POWERED BY C4.4 Engine
CW34 Pneumatic Compactor J3H00001-UP (MACHINE)
CS68B, CP68B Compactor 43900001-UP (MACHINE) POWERED BY C6.6 Engine
CS78B Compactor 44300001-UP (MACHINE) POWERED BY C6.6 Engine
CS56B Compactor 43700001-UP (MACHINE) POWERED BY C6.6 Engine
CS54B Compactor 54400001-UP (MACHINE) POWERED BY C4.4 Engine
CS64B Compactor C6400001-UP (MACHINE) POWERED BY C4.4 Engine
CS74B Compactor 44100001-UP (MACHINE) POWERED BY C6.6 Engine
CS66B Compactor CS600001-UP (MACHINE) POWERED BY C4.4 Engine
CS76B Vibratory Soil Compactor L9H00001-UP (MACHINE) POWERED BY C4.4 Engine
CW34 Pneumatic Compactor C3400001-UP (MACHINE) POWERED BY C4.4 Engine
CW34 Pneumatic Compactor CT300001-UP (MACHINE) POWERED BY C4.4 Engine
CS74B, CP74B, and CS78B Compactor-Vibratory Soil E7E00001-UP (MACHINE) POWERED BY C6.6 Engine
CS54B, CP54B Compactor MFC00001-UP (MACHINE) POWERED BY C4.4 Engine
CS54B,CP54B Vibratory Soil Compactor M5B00001-UP (MACHINE) POWERED BY C4.4 Engine
CS74B, CP74B Vibratory Compactor 49000001-UP (MACHINE) POWERED BY C4.4 Engine
CS78B, CS76B Vibratory compactor 49200001-UP (MACHINE) POWERED BY C4.4 Engine
CS54B, CP54B Vibratory Compactor 48200001-UP (MACHINE) POWERED BY C4.4 Engine
CS56B, CP56B Vibratory Compactor 48400001-UP (MACHINE) POWERED BY C4.4 Engine
CS66B, CS64B Vibratory Compactor 48600001-UP (MACHINE) POWERED BY C4.4 Engine
CS68B, CP68B Vibratory Compactor 48800001-UP (MACHINE) POWERED BY C4.4 Engine
CS56B, CP56B Vibratory Soil Compactor P5600001-UP (MACHINE) POWERED BY C4.4 Engine
CS76B, CS78B Vibratory Soil Compactor CB700001-UP (MACHINE) POWERED BY C4.4 Engine
CS74B, CP74B Vibratory Soil Compactor CS400001-UP (MACHINE) POWERED BY C4.4 Engine
CS54B, CP54B Vibratory Soil Compactor CS500001-UP (MACHINE) POWERED BY C4.4 Engine
CS68B, CP68B Vibratory Soil Compactor CS800001-UP (MACHINE) POWERED BY C4.4 Engine
CS66B, CS64B Vibratory Soil Compactor CW600001-UP (MACHINE) POWERED BY C4.4 Engine
CW34 Pneumatic Compactor AL300001-UP (MACHINE) POWERED BY C4.4 Engine
RM500B Rotary Mixer MB900001-UP (MACHINE) POWERED BY C15 Engine
CS54B OEM Compactor MJ500001-UP (MACHINE) POWERED BY C4.4 Engine
CS64B Vibratory Soil Compactor DH600001-UP (MACHINE) POWERED BY C4.4 Engine
CS79B Vibratory Soil Compactor C7900001-UP (MACHINE) POWERED BY C6.6 Engine
D6K2 LGP Track-Type Tractor JTR00001-UP (MACHINE) POWERED BY C4.4 Engine
D6K2 XL Track-Type Tractor DFR00001-UP (MACHINE) POWERED BY C4.4 Engine
950M Z Wheel Loader HE800001-UP (MACHINE) POWERED BY C7.1 Engine
962M Z Wheel Loader SA800001-UP (MACHINE) POWERED BY C7.1 Engine
950L Wheel Loader LXX00001-UP (MACHINE) POWERED BY C7.1 Engine
962L Wheel Loader SXS00001-UP (MACHINE) POWERED BY C7.1 Engine
950M Wheel Loader ENE00001-UP (MACHINE) POWERED BY C7.1 Engine
962M Wheel Loader LSE00001-UP (MACHINE) POWERED BY C7.1 Engine
MH3037 Material Handler JPB00001-UP (MACHINE) POWERED BY C7.1 Engine
730C2 Articulated Truck 2T400001-UP (MACHINE) POWERED BY C13 Engine
730C2 Ejector Articulated Truck 2T500001-UP (MACHINE) POWERED BY C13 Engine
730C2 Articulated Truck 2L700001-UP (MACHINE) POWERED BY C13 Engine
730C2 Ejector Articulated Truck 2L800001-UP (MACHINE) POWERED BY C13 Engine
CS56B, CP56B Vibratory Soil Compactor 50700001-UP (MACHINE) POWERED BY C7.1 Engine
CS54B, CP54B Vibratory Soil Compactor 50500001-UP (MACHINE) POWERED BY C4.4 Engine
CS54B, CP54B Vibratory Soil Compactor G5400001-UP (MACHINE) POWERED BY C4.4 Engine
950M Wheel Loader LCR00001-UP (MACHINE) POWERED BY C7.1 Engine
962M Wheel Loader RCL00001-UP (MACHINE) POWERED BY C7.1 Engine
980M Wheel Loader MK200001-UP (MACHINE) POWERED BY C13 Engine
982M Wheel Loader MK600001-UP (MACHINE) POWERED BY C13 Engine
950L Wheel Loader TNS00001-UP (MACHINE) POWERED BY C7.1 Engine
962L Wheel Loader MTN00001-UP (MACHINE) POWERED BY C7.1 Engine
980M Wheel Loader MGD00001-UP (MACHINE) POWERED BY C13 Engine
982M Wheel Loader LRS00001-UP (MACHINE) POWERED BY C13 Engine
CS56B, CP56B Vibratory Soil Compactor M5600001-UP (MACHINE) POWERED BY C7.1 Engine
CS74B, CP74B Vibratory Soil Compactor 51200001-UP (MACHINE) POWERED BY C7.1 Engine
CS68B, CP68B Vibratory Soil Compactor 50900001-UP (MACHINE) POWERED BY C7.1 Engine
CS68B, CP68B Vibratory Soil Compactor CM600001-UP (MACHINE) POWERED BY C7.1 Engine
CS74B, CP74B Vibratory Soil Compactor B7M00001-UP (MACHINE) POWERED BY C7.1 Engine
CS78B Vibratory Soil Compactor 51300001-UP (MACHINE) POWERED BY C7.1 Engine
CS78B, CS79B Vibratory Soil Compactor CM700001-UP (MACHINE) POWERED BY C7.1 Engine
CS54B, CP54B Vibratory Soil Compactor 5M400001-UP (MACHINE) POWERED BY C4.4 Engine
CS64B Vibratory Soil Compactor 51800001-UP (MACHINE) POWERED BY C4.4 Engine
CS64B Vibratory Soil Compactor TF600001-UP (MACHINE) POWERED BY C4.4 Engine
C32 Locomotive Engine WJD00001-UP
MH3037 Material Handler JLH00001-UP (MACHINE) POWERED BY C7.1 Engine
637K Wheel Tractor Scraper WTY00001-UP (MACHINE)
CCS7 Asphalt Compactor C5200001-UP (MACHINE) POWERED BY C4.4 Engine
563D WHEEL FELLER BUNCHER D6300001-UP (MACHINE) POWERED BY C7.1 ENGINE
2570D WHEEL FELLER BUNCHER D2500001-UP (MACHINE) POWERED BY C7.1 ENGINE
573D WHEEL FELLER BUNCHER D7300001-UP (MACHINE) POWERED BY C7.1 ENGINE
2670D WHEEL FELLER BUNCHER D2600001-UP (MACHINE) POWERED BY C7.1 ENGINE
D6K2 LGP, XL TRACK-TYPE TRACTOR EL700001-UP (MACHINE) POWERED BY C4.4 ENGINE
D6N XL, LGP TRACK-TYPE TRACTOR NJN00001-UP (MACHINE) POWERED BY C7.1 Engine
M314F Wheeled Excavator FB400001-UP (MACHINE) POWERED BY C4.4 Engine
M316F Wheeled Excavator FB600001-UP (MACHINE) POWERED BY C4.4 Engine
M318F Wheeled Excavator FB800001-UP (MACHINE) POWERED BY C7.1 Engine
M320F Wheeled Excavator FB200001-UP (MACHINE) POWERED BY C7.1 Engine
M322F Wheeled Excavator FBW00001-UP (MACHINE) POWERED BY C7.1 Engine
MH3022 Wheeled Excavator Material Handler FB300001-UP (MACHINE) POWERED BY C7.1 Engine
MH3024 Wheeled Excavator Material Handler FB500001-UP (MACHINE) POWERED BY C7.1 Engine
CP76B Vibratory Soil Compactor J7600001-UP (MACHINE) POWERED BY C7.1 Engine
953K Track-Type Loader LJT00001-UP (MACHINE) POWERED BY C7.1 Engine
M315F Wheeled Excavator F4D00001-UP (MACHINE) POWERED BY C4.4 Engine
M317F Wheeled Excavator F6P00001-UP (MACHINE) POWERED BY C4.4 Engine
CW34 Pneumatic Compactor 3G400001-UP (MACHINE) POWERED BY Engine C4.4
579D Knuckleboom Loader KL700001-UP (MACHINE) POWERED BY C4.4 Engine
559D Knuckleboom Loader KL500001-UP (MACHINE) POWERED BY C4.4 Engine
2484D Knuckleboom Loader KP700001-UP (MACHINE) POWERED BY C4.4 Engine
2384D Knuckleboom Loader KP500001-UP (MACHINE) POWERED BY C4.4 Engine
C32 Engine Emissions Retrofit Repower FKR00001-UP (MACHINE) POWERED BY Tier II for 777D Truck FKR00001-UP (MACHINE)
930M Small Wheel Loader HEY00001-UP (MACHINE) POWERED BY C7.1 Engine
| original | 320-1291, 3201291, CA3201291 |
