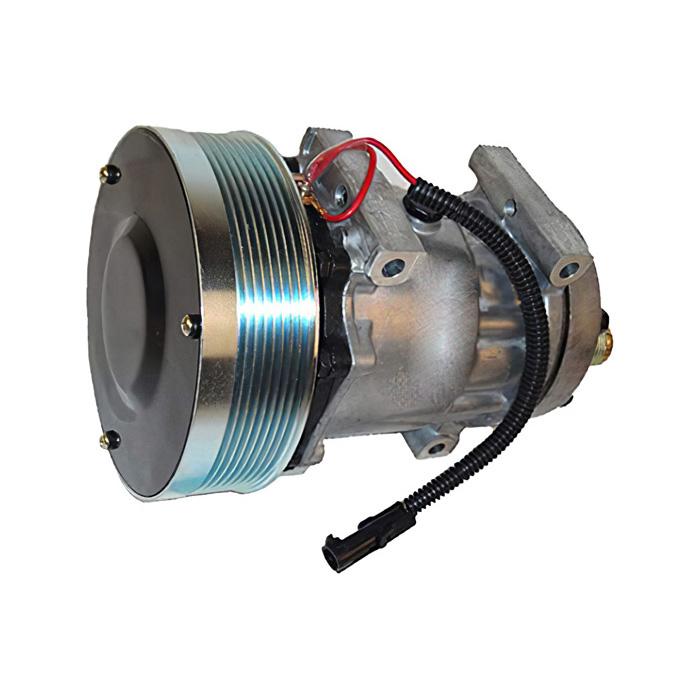

SD7H15 A/C Compressor 86993463 for CASE 1021F 1121F 6130 635 7010 7120 7130 7230 8010 8120 8230 9010 9120 9230 4430
TYPE:
A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor?
Part Number:
86993463
Specification:
Compressor Family: SD7H15
Style: Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: MD
Port Angle: Horizontal
Head Port Style: 14
Clutch Diameter: 152 mm inch
Clutch Style: With Dust Cover
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 12
Coil Connector: 1 Wire Female Packard #12010996
Coil Position: 12 O'clock
Oil Type: SP15 or PAG 100
Oil Qty: 285cc
Fit For CASE Engine:
F2CE9684A E009, F2CE9684C E020, F2CE9684C E025, F2CE9684L E005, F2CE9684M E006, F2CE9684M E008, F2CE9684N E005, F2CE9684P E006, F2CE9684P E008, F2CE9684P E024, F2CE9684U E026, F2CFE613A A016, F2CFE613A A017, F2CFE613A E016, F2CFE613E B006, F2CFE613R A021, F2CFE613S A020, F2CFE613T A019, F2CFE613T E003, F2CFE614B A002, F2CFE614C A002, F2CFE614C A003, F2CFE614D A004, F2CFE614E A004, F2CFZ613A E016, F3AE0684D B001, F3AE0684G B001, F3AE0684G B003, F3AE0684J B901, F3AE0684J B902, F3AE0684K E904, F3AE0684K E905, F3AE0684K E910, F3AE0684M B903, F3AE0684P E904, F3AE0684P E905, F3BE0684G E901, F3BE0684H E901, F3BE0684H E902, F3BE0684N E903, F3BE0684N E906, F3BE0684N E915, F3BE0684Q E901, F3BE0684Q E902, F3BE0684Q E905, F3BE0684R E901, F3BE0684R E905, F3CE0684B E003, F3CE0684B E005, F3DFA613A E001, F3DFA613A E002, F3DFA613B E003, F3DFA613B E004, F3DFE613A A001, F3DFE613A A002, F3DFE613B A001, F3DFE613B A002, F3DFE613F B001, F3DFE613F B002, F3GFE613A B001, F3HFE613A B009, F3HFE613B B001, F3HFE613B B002, F3HFE613D B001, F3HFE613D B002, F3HFE613G B001, F3HFE613G B002, F3JFA613D E001, F3JFE613A B001, F3JFE613A B002
Applications:
Fit For CASE self-propelled sprayer:
4430, PATRIOT 4440, TITAN 3030, TITAN 3040, TITAN 3530, TITAN 3540, TITAN 4030, TITAN 4040, TITAN 4530, TITAN 4540
Fit For CASE Combine:
6130, 635, 7010, 7120, 7130, 7230, 8010, 8120, 8230, 9010, 9120, 9230, AFX8010
Fit For CASE Wheel Loader:
1021F, 1121F
Fit For CASE Tractor:
MAGNUM 215, MAGNUM 235, MAGNUM 245, MAGNUM 250, MAGNUM 255, MAGNUM 260, MAGNUM 2654, MAGNUM 275, MAGNUM 280, MAGNUM 290, MAGNUM 305, MAGNUM 310, MAGNUM 315, MAGNUM 3154, MAGNUM 335, MAGNUM 340, MAGNUM 370, MAGNUM 380, MX215, MX245, MX275, MX305, QUADTRAC 370, QUADTRAC 420, QUADTRAC 450, QUADTRAC 470, QUADTRAC 500, QUADTRAC 540, QUADTRAC 550, QUADTRAC 580, QUADTRAC 600, QUADTRAC 620, STEIGER 350, STEIGER 370, STEIGER 380, STEIGER 385, STEIGER 400, STEIGER 420, STEIGER 430, STEIGER 435, STEIGER 450, STEIGER 470, STEIGER 480, STEIGER 485, STEIGER 500, STEIGER 530, STEIGER 535, STEIGER 540, STEIGER 550, STEIGER 580, STEIGER 600, STEIGER 620, STX375, STX380, STX425, STX430, STX450, STX480, STX500, STX530
See Details:
Fit For CASE Model:
(4430) - PATRIOT SPRAYER TIER 4 (9/11-12/14)
(6130) - COMBINE - TIER 4 COMMON CAB (1/13-3/14)
(6130) - COMBINE TIER 4 (1/12-1/13)
(635) - MODULE EXPRESS (1/08-)
(7010) - AXIAL-FLOW COMBINE (2/07-9/08)
(7120) - AXIAL-FLOW COMBINE (9/08-3/12)
(7130) - COMBINE - TIER 4 COMMON CAB (1/13-3/14)
(7130) - COMBINE TIER 4 (1/12-1/13)
(7230) - COMBINE - TIER 4 (3/12-1/13)
(7230) - COMBINE - TIER 4 COMMON CAB (1/13-9/14)
(8010) - AXIAL-FLOW COMBINE (9/06-9/08)
(8120) - AXIAL-FLOW COMBINE (9/08-3/12)
(8230) - COMBINE - TIER 4 (3/12-1/13)
(8230) - COMBINE - TIER 4 COMMON CAB (1/13-9/14)
(9010) - AXIAL-FLOW COMBINE (9/07-9/08)
(9120) - AXIAL-FLOW COMBINE (9/08-3/12)
(9230) - COMBINE - TIER 4 (3/12-1/13)
(9230) - COMBINE - TIER 4 COMMON CAB (1/13-9/14)
(AFX8010) - AXIAL-FLOW COMBINE (3/03-9/06)
(F2CE9684A E009) - (1/14-12/14)
(F2CE9684L E005) - (1/06-12/12)
(F2CE9684M E006) - (1/06-12/12)
(F2CE9684M E008) - (1/14-12/14)
(F2CE9684N E005) - (1/06-12/12)
(F2CE9684P E006) - (1/14-12/14)
(F2CE9684P E008) - (1/08-12/12)
(F2CFE613A A016) - ENGINE 5801454650 - 84148721 (9/10-12/13)
(F2CFE613A A017) - ENGINE 5801382792 - 84169594 (9/10-12/14)
(F2CFE613A E016) - ENGINE 5801468681- 84375947 (1/11-12/11)
(F2CFE613E B006) - ENGINE 5801382793 - 84169593 (9/10-)
(F2CFE613R A021) - ENGINE 5801408191 - 84237539 (6/10-12/13)
(F2CFE613S A020) - ENGINE 5801495551 - 84148719 (10/10-12/13)
(F2CFE613T A019) - ENGINE 5801495550 - 84148720 (10/10-12/13)
(F2CFE613T E003) - ENGINE 5801468682 - 84375945 (9/10-12/13)
(F2CFE614D A004) - ENGINE 5801481886 - 84559510 (11/11-12/13)
(F2CFE614E A004) - ENGINE 5801530971 - 84341724 (8/11-12/13)
(F2CFZ613A E016) - ENGINE 5801468683 - 84276550 (9/10-12/13)
(F3AE0684D B001) - FPT (1/05-12/11)
(F3AE0684G B001) - FPT (1/02-12/07)
(F3AE0684G B003) - FPT (1/02-)
(F3AE0684J B901) - (1/03-12/07)
(F3AE0684J B902) - (1/03-12/07)
(F3AE0684K E904) - (1/08-12/12)
(F3AE0684K E905) - (1/08-12/12)
(F3AE0684K E910) - ENGINE 504364643 - 84152773 (11/10-12/11)
(F3AE0684M B903) - (1/14-12/14)
(F3AE0684P E904) - (1/08-12/11)
(F3AE0684P E905) - (1/14-12/14)
(F3BE0684G E901) - (1/05-12/11)
(F3BE0684H E901) - (1/14-12/14)
(F3BE0684H E902) - (1/05-12/11)
(F3BE0684N E903) - (1/14-12/14)
(F3BE0684N E906) - (1/07-12/10)
(F3BE0684N E915) - ENGINE 5801383426 - 84362073 (9/10-12/13)
(F3BE0684Q E901) - (1/07-12/10)
(F3BE0684Q E902) - (1/07-12/10)
(F3BE0684Q E905) - (1/07-12/10)
(F3BE0684R E901) - (1/07-12/10)
(F3BE0684R E905) - (1/07-12/10)
(F3CE0684B E003) - (1/07-)
(F3CE0684B E005) - (1/08-)
(F3DFA613A E001) - ENGINE 504384987 - 84250913 W/BRAKE (2/10-12/14)
(F3DFA613A E002) - ENGINE 504384988 - 84250914 W/O BRAKE (2/10-12/14)
(F3DFA613B E003) - ENGINE 504384985 - 84250911 W/BRAKE (2/10-)
(F3DFA613B E004) - ENGINE 504384986 - 84550912 W/O BRAKE (3/07-)
(F3DFE613A A001) - ENGINE 504381601 - 84244004 W/BRAKE (10/09-)
(F3DFE613A A002) - ENGINE 504381593 - 84244005 W/O BRAKE (11/09-)
(F3DFE613B A001) - ENGINE 504381599 - 84244002 W/BRAKE (10/09-)
(F3DFE613B A002) - ENGINE 504381486 - 84244003 W/O BRAKE (11/09-)
(F3DFE613F B001) - ENGINE - 5801779280 - 84600683 (47406873 - 47496304 - 47496305) W/ BRAKE (3/14-)
(F3DFE613F B002) - ENGINE - 5801779281 - 84600680 (47496303 - 47496302 - 47406874) W/O BRAKE (3/14-)
(F3GFE613A B001) - ENGINE 5801863562 - 47686396 CURSOR 11 TIER 4B AF7240 NAR 365 KW (9/14-)
(F3HFE613A B009) - ENGINE 5801874888 476842475 CURSOR 13 CR9.90 TIER4B EU (1/14-)
(F3HFE613B B001) - ENGINE - 5801778728 - 47406841 (47406843 - 84600675) W/ BRAKE (3/14-)
(F3HFE613B B002) - ENGINE - 5801778732 - 47406846 (47406849 - 84600676) W/O BRAKE (3/14-)
(F3HFE613D B001) - ENGINE - 5801778729 - 47406834 (84600674) W/ BRAKE (4/14-)
(F3HFE613D B002) - ENGINE - 5801778733 - 47406838 (84600673) W/O BRAKE (6/13-)
(F3HFE613G B001) - ENGINE - 5801778731 - 84600672 W/ BRAKE (4/14-)
(F3HFE613G B002) - ENGINE - 5801778735 - 84600671 W/O BRAKE (4/14-)
(F3JFA613D E001) - ENGINE 5801869887 - 47686404 CURSOR 16 Tier2 AF9240 ROW 480 KW (9/14-)
(F3JFE613A B001) - ENGINE 5801869883 - 47686398 CURSOR 16 TIER 4B AF9240 NAR 480 KW (9/14-)
(F3JFE613A B002) - ENGINE 5801869884 - 47686401 CURSOR 16 TIER 4B AF9240 480 KW (1/14-)
(MAGNUM 215) - TRACTOR (NA) (9/06-12/10)
(MAGNUM 235) - TRACTOR - TIER 4A (3/11-12/14)
(MAGNUM 235) - TRACTOR ( BR 09/2011 (1/11-)
(PATRIOT 4440) - PATRIOT SPRAYER - TIER 4B (8/14-12/16)
(TITAN 3030) - FLOATER - TIER 4 (2/12-12/14)
(TITAN 3040) - FLOATER - TIER 4B (1/15-)
(TITAN 3530) - FLOATER - TIER 4 (2/12-12/14)
(TITAN 3540) - FLOATER - TIER 4B (1/15-)
(TITAN 4030) - FLOATER - TIER 4 (2/12-12/14)
(TITAN 4040) - FLOATER - TIER 4B (1/15-)
(TITAN 4530) - FLOATER - TIER 4 (2/12-12/14)
(TITAN 4540) - FLOATER - TIER 4B (1/15-)
| original | 86993463 |
