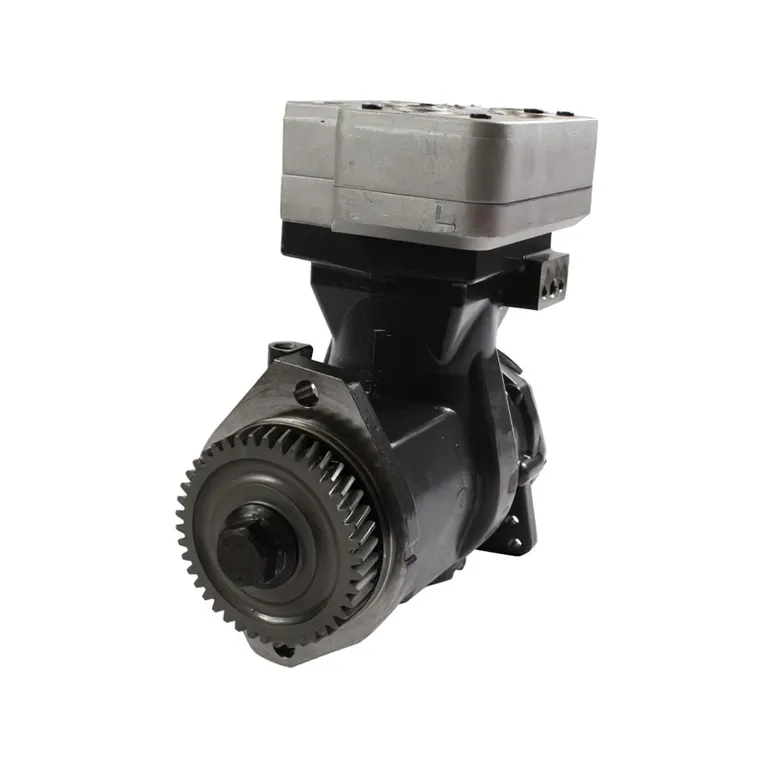

Air Brake Compressor 9111539380 for Cummins ISB QSB ISF Engine

Air Brake Compressor 9111539380 for Cummins ISB QSB ISF Engine

Part Number:
911.153.938.0, 9111539380, 911 153 938 0, 9111530100, 9P921823, 3969110

Applications:
Cummins Engine:ISB, QSB, ISF

Specification ?br />Crankshaft thread:? 34.9 mm
Max.operativni pritisak:10.0 bar
Operating speed (1/min):3000 (1/min)
Piston diameter:85 mm
Piston stroke:56 mm
Port thread 0:? 20.5 mm
Port thread 2:M27 x 2.0
Port thread 4:M10 x 1
Port thread 8.1:M10 x 1
Port thread 9:3/4" - 16 UNF
Port thread 9.1:3/4" - 16 UNF
Port thread 9.2:3/4" - 16 UNF
Swept volume (cm3):318 cm3
Temperature range:-30C to +90C
Tip:Single Cylinder
Calculated Volume (dm3):12.832
Dimenzije (MM x MM x MM):275 x 154 x 303
