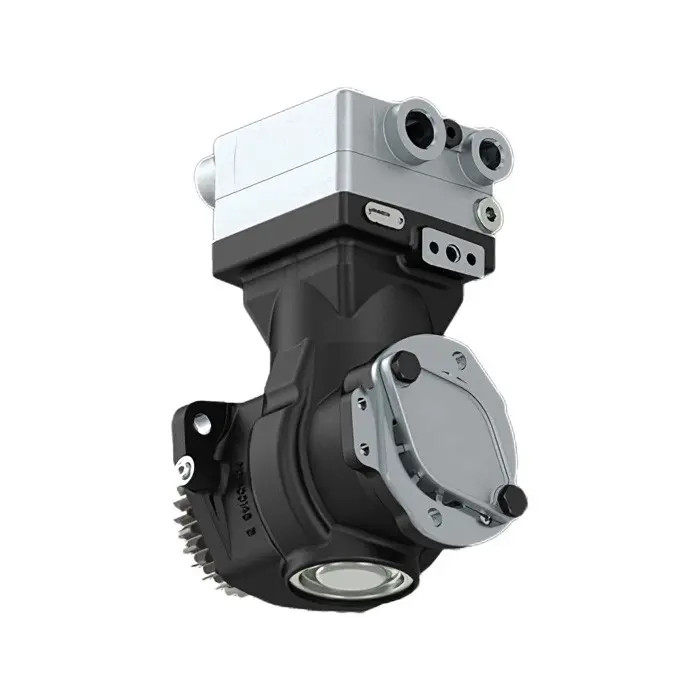

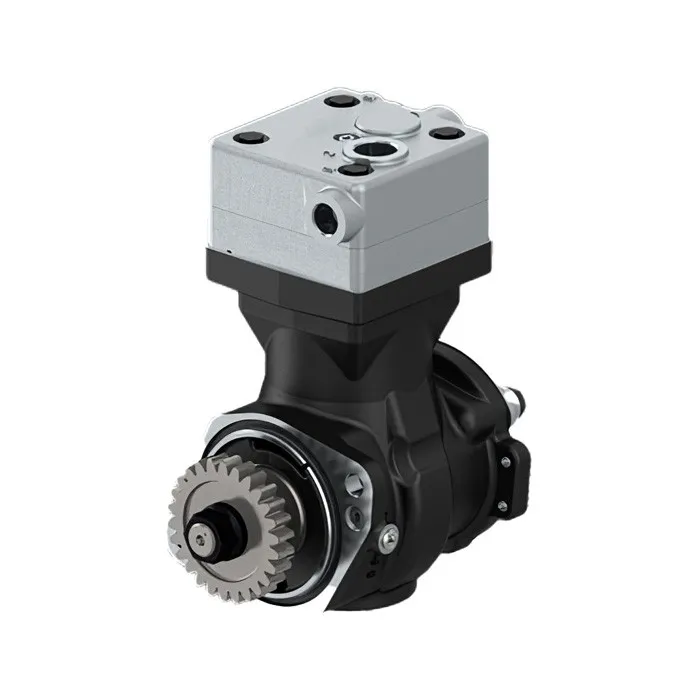

Air Brake Compressor Wabco 9121400150 for Cummins

Air Brake Compressor Wabco 9121400150 for Cummins

Part Number:
9121400150, 912 140 015 0

Specification ?strong>
Size (mm x mm x mm):226 x 120 x 217
Crankshaft thread:M20 x 1.5 LH
Max. operating pressure:14.0 bar
Operating speed:3000 (1/min)
Piston diameter:85.0 mm
Piston stroke:56 mm
Port thread0:3/4" - 14 NPTF
Port thread2:M26 x 1.5
Port thread4:M10 x 1.0
Port thread8.1:? 4 mm
Port thread9:2x 1/2" - 14 NPTF
Swept volume (cm³):318 cm3
Calculated Volume (dm3):5.885

Applications:
For Cummins
