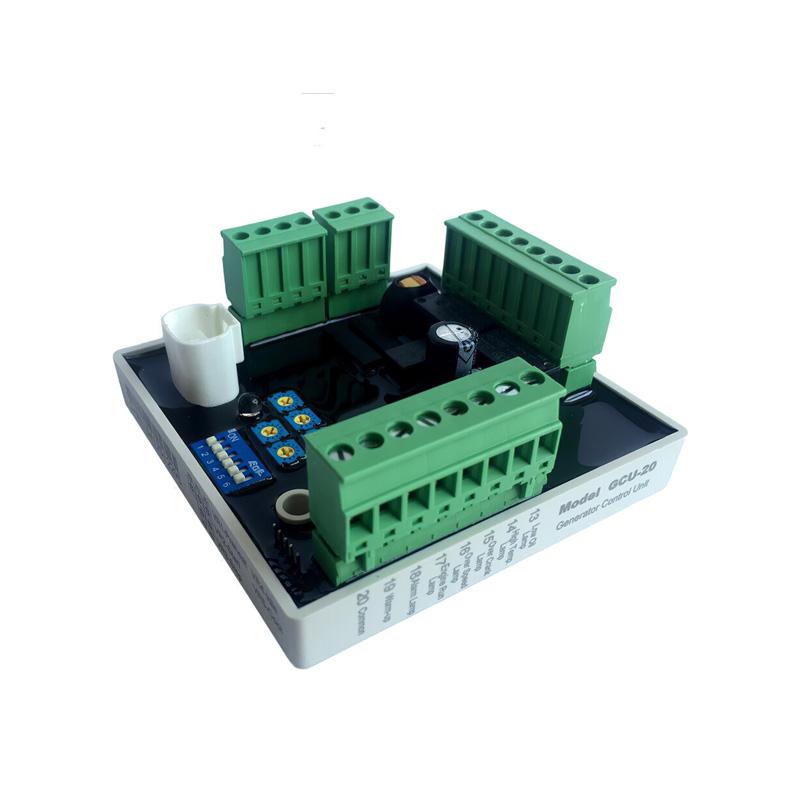

Automatic Controller GCU-20 for Generator Control Unit

Automatic Controller GCU-20 for Generator Control Unit

GCU-20 Automatic Engine and Generator Control Unit has many useful functions like annunciator alarm output and selectable EM81 / EM121 MPU signal for speed sensing. It's suitable for pump engine control. GCU-20 also provide IDLE control for electronic governors.

Features:
Microprocessor based design
Universal LED graphic interface, displays generator status and failures
Modular design, quick installation
With annunciator alarm output
Selectable MPU signal for speed sensing
Suitable for pump engine control
With lamp test function for all front panel LEDs and annunciator lamps
Provide IDLE control for Elec. governors
Five adjustable time delay potentiometers
Six DIP switches for setting different engine parameters

Specification:
DC Supply:Voltage 9 to 36 Vdc
Alternator Input Range:
Voltage 5 to 300 Vac
Frequency 50/60 Hz
MPU Signal Input Range:+/-2V to 70V Peak
Rated MPU Frequency:100 to 10,000 Hz
Fuel Solenoid Signal Output:10 Amp @ 12/24 Vdc
Start Signal Output:10 Amp @ 12/24 Vdc
Annunciator Output:300 mA @ 12/24 Vdc
Power Consumption:Under 3 watts

Protection and Alarm Status Indicators:
Start Failure
High Water Temp.
Low Oil Pressure
No Speed Signal
Overspeed
Underspeed
Extra Prog. Input

Adjustable Timers
Engine Pre-Heat:2 to 30 seconds
Starter Cranking Time:1 to 15 seconds
Energize to STOP:1 to 15 seconds
Engine Idle (Governor):0 to 300 seconds
Engine Cool-Down:0 to 300 seconds

Environment
Operating Temperature :-20 to +60 C
Storage Temperature:-35 to +85 C
Relative Humidity:Less than 90%
