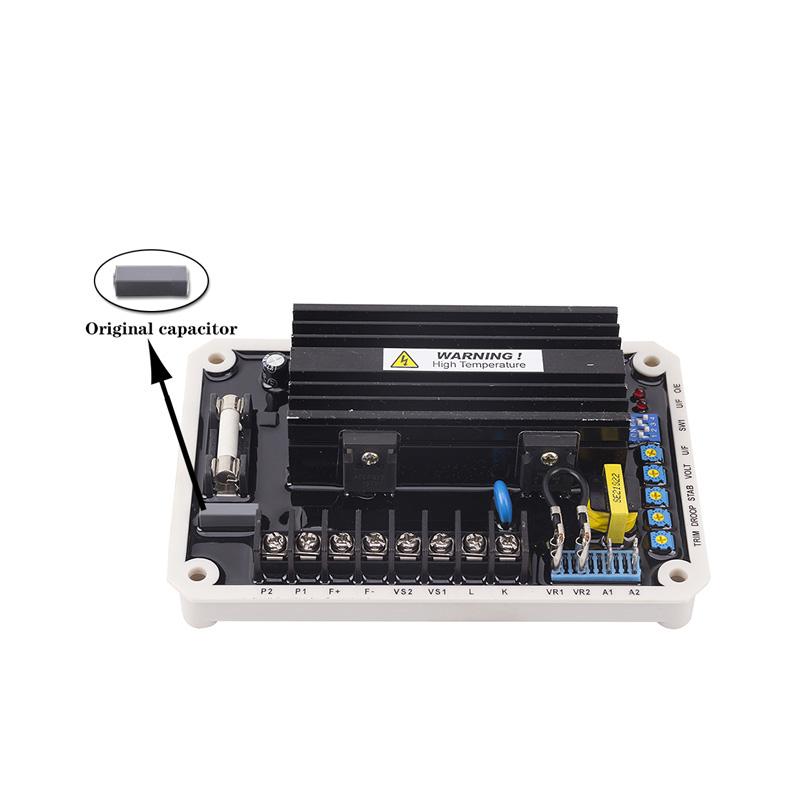

Automatic Voltage Regulator AVR EA16 400HZ for Generator Genset

Automatic Voltage Regulator AVR EA16 400HZ for Generator Genset

Specification:
Sensing Input
Voltage 170 ~ 510 VAC, Single Phase 2 wires
Voltage is DIP Switch selectable
Frequency 50 / 60 Hz, DIP Switch selectable
Power Input
Voltage 60 ~ 300 VAC, Single Phase 2 wires
Output
Voltage Max. 90 VDC @ 240 VAC input
Current Continuous 16A
Intermittent 20A for 10 sec
Resistance Min. 5 ohm
Voltage Regulation

Voltage Build-up
Residual voltage at AVR terminal > 5 VAC
Thermal Drift
0.03% per C change in AVR ambient
Load Current Compensation
1A or 5A Max. 7% @ PF0.5 DIP Switch Selectable
Analogue Voltage Input
Max. 5VDC. 10% @ 3VDC
Over Excitation Protection
Max Output DCV 95% 20Sec
External Volts Adjustment
5% with 2K ohm 1 watt trimmer
Unit Power Dissipation
Max. 10 watt
Under Frequency Protection ( Factory Setting )
50/60 Hz DIP SW selectable
Soft Start Ramp Time
