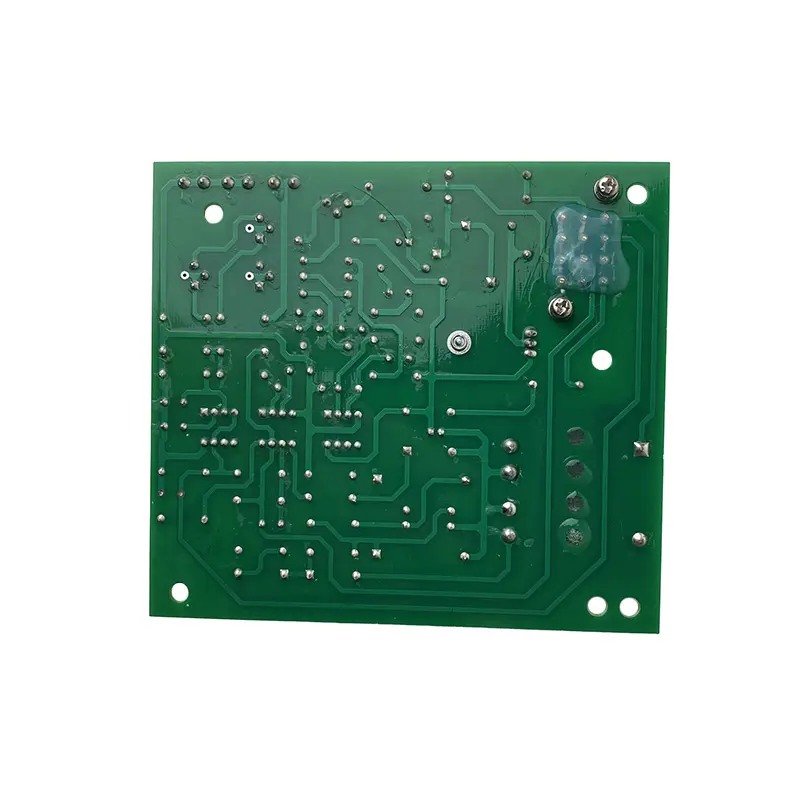

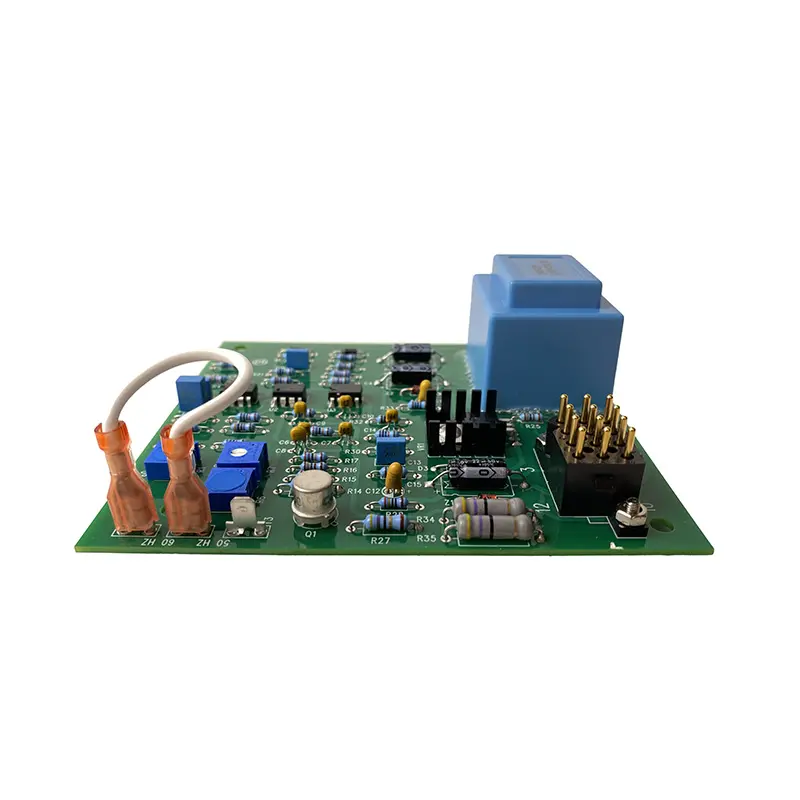

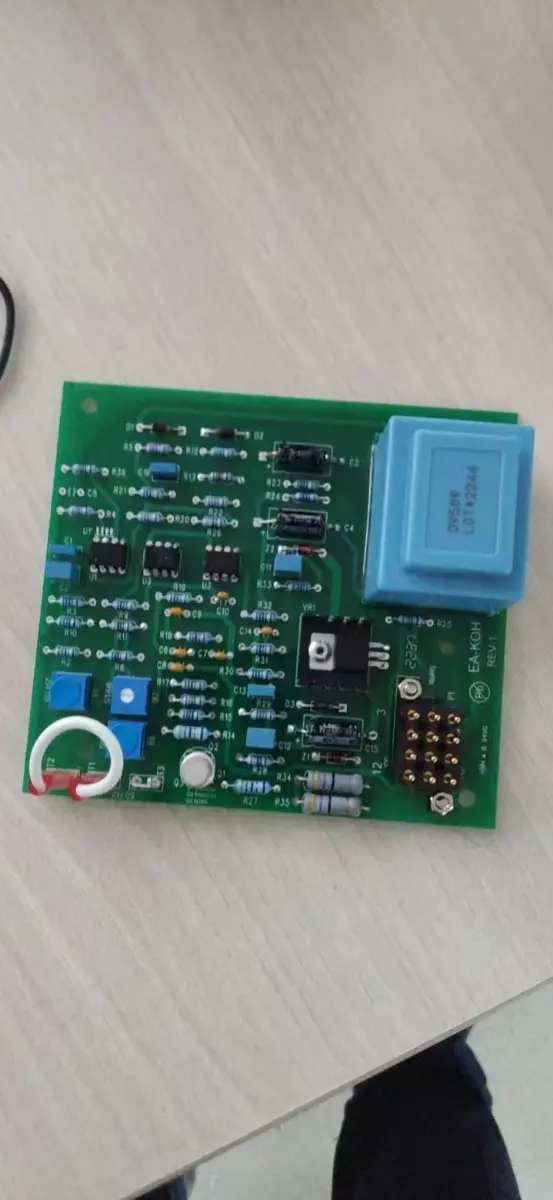

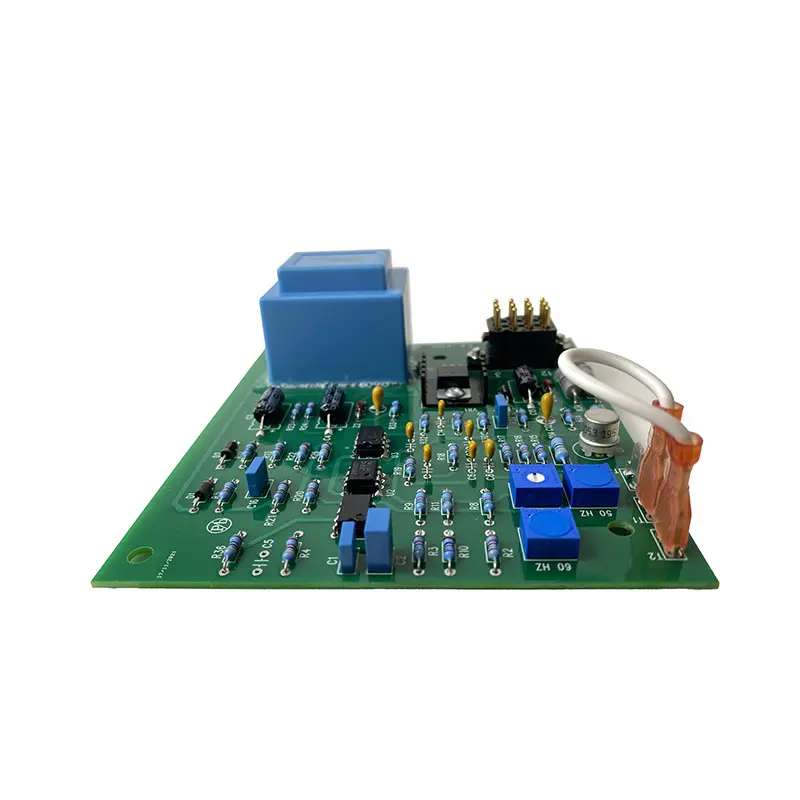

Automatic Voltage Regulator AVR EA-KOH for Kohler Generator Genset
Category: Electrical Parts
Automatic Voltage Regulator AVR EA-KOH for Kohler Generator Genset
Features:
Voltage regulation
Drive infrared LED to control excitation
50 / 60 Hz optional
Under frequency protection
Adjustable stability
External voltage trimmer applicable
Specifications:
Sensing Input:Voltage 220 Vac 1 phase 2 wire
Frequency 50 / 60 Hz select by jumper
External Volts Adjustment:+/- 10% with 1K ohms 1 watt trimmer
Under Frequency Protection (Factory Knee Point Setting):
50 Hz system presets knee point at 45 Hz
60 Hz system presets knee point at 55 Hz
Power Input:Voltage 10-26 Vdc
Output:Current 20 mA
Volts Regulation:
Environment:
Operation Temperature -40 - +65 C
Storage Temperature -40 - +80 C
Relative Humidity Max. 95%
Vibration 3.3Gs @ 100-2K Hz
Voltage Thermal Drift:0.05% per C change in AVR ambient
Unit Power Dissipation:Max. 2 watts
?
