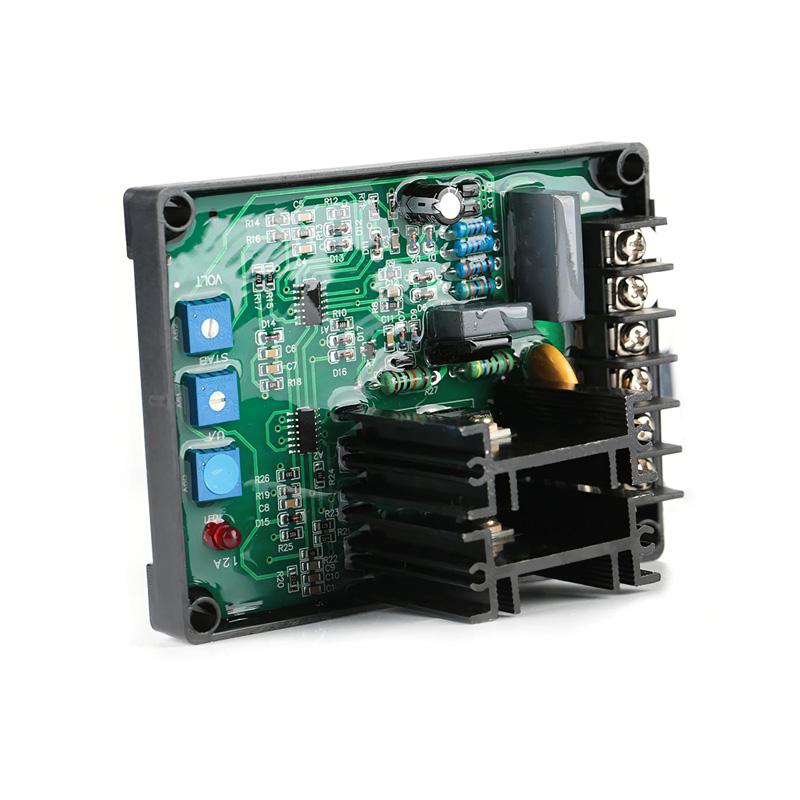

Automatic Voltage Regulator AVR GAVR-10A for Generator Genset

Automatic Voltage Regulator AVR GAVR-10A for Generator Genset

Description ?br />Following are the main features of General Generator AVR GAVR-10A:
1. Automatic Voltage Regulator,Brushless AVR
2.MAX.Output Current:10A for 10 Second
3. Loading Impedance: 15~100OHM
4. Temperature Stability:
5. Under Frequency protection point: 45HZ for 50Hz apply (55Hz for 60Hz supply)

Specifications:
Input :
Sensing Voltage : 220/400VAC,1phase 2wire
Power Voltage : 180~240VAC, 1phase 2wire
Voltage Jumper selectable : 95-132V ac or 190-264 Hz nominal
Frequency : 50-60 Hz nominal
Output :
Voltage max : 90V dc at 207V ac input
Current continuous : 2A dc
Current intermittent : 5A for 10 secs
Resistance : 20 ohms minimum
Voltage Build-up : esidualvolts at AVR terminal>5VAC
External volts adjustment : +/-7%with 1K?? 1watt trimmer
Unit Power Dissipation : Max.8Watt
Under Frequency Protection : 60Hz system presets knee point at 57Hz
Factory Settings : 50Hz system presets knee point at 47Hz
Body size : 10.7*8.2*125px
