Automatic Voltage Regulator AVR R120 for Leroy Somer Generator
- OEM Part Number
- R120
PRO Program members can receive tiered savings on this line—up to 20% more off for qualifying accounts.
Shipping estimate & delivery timing
Share & Save!
Share this product on social media and get an exclusive discount code!
Click any platform below to share this product. After sharing, you'll receive a discount code!
Built to support repair shops, fleets, and equipment owners with dependable parts sourcing and responsive service.
Qualifying new parts include 1-year coverage. Review the Warranty Policy section for coverage details, claim steps, and exclusions.
Eligible orders may qualify for returns within 90 days. See the Easy Return Policy section for conditions and next steps.
Send a question through Ask a Product Question or the contact form. Our team reviews requests on business days and follows up as quickly as possible.
Description

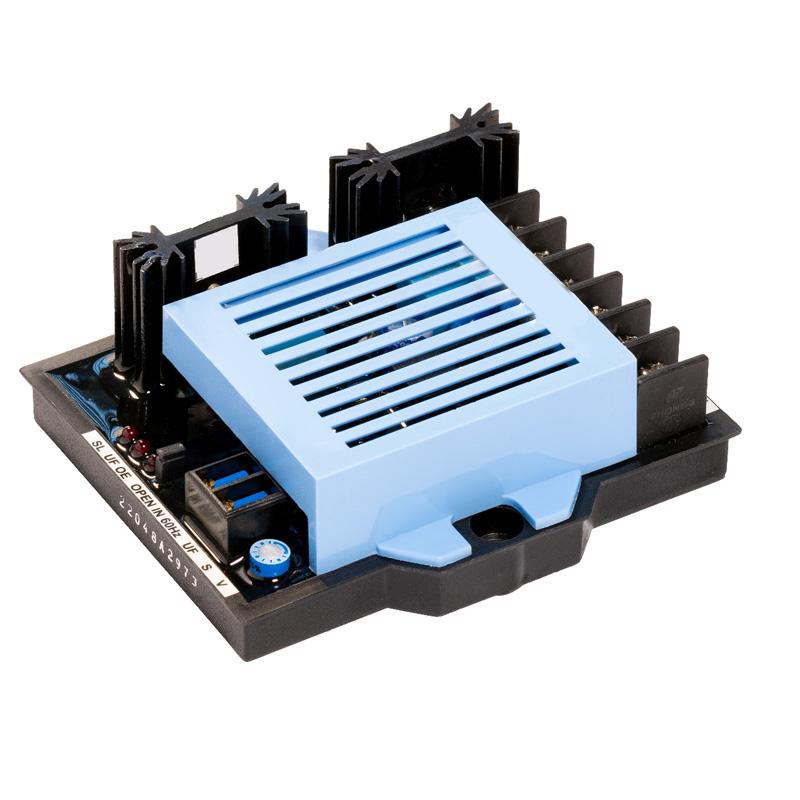

Automatic Voltage Regulator AVR R120 for Leroy Somer Generator
The R120 is used on the following Leroy Somer Alternators:
TAL040 B, TAL040 C, TAL040 C1, TAL040 D, TAL040 E, TAL040 F
TAL042 A, TAL042 B, TAL042 C, TAL042 D, TAL042 E, TAL042 F, TAL042 G, TAL042 H
TAL044 A, TAL044 B, TAL044 C, TAL044 D, TAL044 D1, TAL044 E, TAL044 H, TAL044 J, TAL044 K
SAME EXACT AVR AS:
Leroy Somer Voltage Regulator AEM230RE005
Leroy Somer Voltage Regulator 4969966
Specification:
Sensing input:
- Voltage: 277 VAC 10% for 1-phase,
415 VAC line-to-line 10% for 3-phase,
2-line sensing. The AVR senses the true
average of the line-to-line waveform. Use
the resistor (SMD) network for trouble-free
sensing and control of sensed voltage/ regulation.
Input power:
- Voltage: 277 VAC rms 10%
- Frequency: 50/60 Hz
Output power:
- Voltage: 95 VDC for 240 VAC Input
- Current:
4 A DC
6 A for 30 sec. (when allowed by the field resistance)
Operating temperature: -20oC to +70oC
Storage temperature: -40oC to +80oC
Voltage setting: min 10% of rated voltage.
Stability setting: can be adjusted to obtain
a correct transient response in steady state.
Under frequency roll-off setting: available
below 46 Hz for 50 Hz and below 56 Hz for 60 Hz.
Voltage build-up: 2 Volts (L-N)
Voltage regulation: 1% at the AVR
terminals with a THC
Thermal drift: 1% for 30oC change in temperature.
Response time: less than 50 ms.
Closed loop response: typically 0.5 sec to recover 98% of the defined voltage for a field forcing ratio of 1:2.
Sensing loss protection: the voltage
should disappear when the sensing circuit is open.
Overexcitation protection: 10 VDC to 85 VDC.
Set point: 60 VDC
Protection fuse: 4 A, 240 VAC.
Potentiometer sealing: except for the
V-trim potentiometer, all potentiometers are sealed.
Frequency roll-off indicator: LED provided (UF).
Sensing loss indicator: LED provided (SL).
Overexcitation indicator: LED provided (OE).
Protection on the devices: suitable R-C
snubber to be provided for the device used
to protect against voltage surges.
Potting/Encapsulation details: the
components on the AVR should be
completely encapsulated with suitable PU
resin compound to absorb transients/
vibrations during operation.
Alternator excitation details: (typical)
- Full load:
Excitation voltage: 40 to 50 V
Excitation current: 2.5 to 4.0 A
