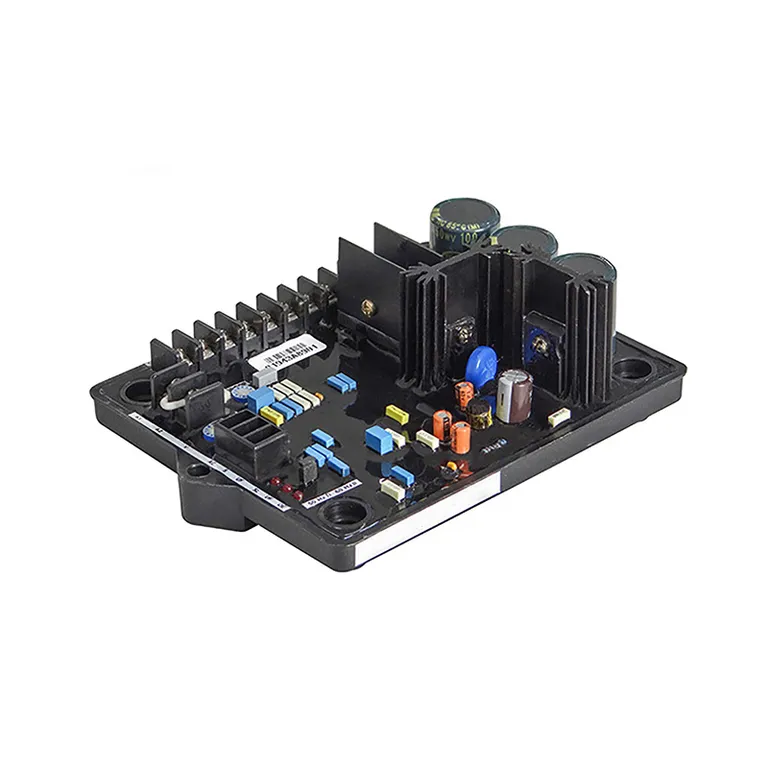

Automatic Voltage Regulator AVR R180 for TAL Generators

Automatic Voltage Regulator AVR R180 for TAL Generators

Part Number:
R180

Applications:
for Denyo Generators

Details:
Sensing input: 3-ph/2-ph - 220/230/240/380/400/415 volts for 50 Hz 3-ph/2-ph - 208/240/277/380/416/440/480 volts for 60 HzVoltage range high: 300V to 530VVoltage range low: 180V to 310VDroop: 1 and 5A AC in U phaseDroop range: 8% droop at 0.8 PFPMG input

Power:
Continuous: 240V RMS +10% Momentary 5 s: 240V RMS + 30 Up to 240 HzAREP+ input

Power:
Continuous: 250V peak+10% Momentary 10 s: 350V peak +5% - Up to 75 HzExcitation current: 6A DC continuous 9A for 5 seconds (short-circuit operation)Regulation: u00b1 0.5% at AVR sensing terminalsMaximum excitation limit: 6A DC (factory setting)Maximum excitation limit delay: 30 sec. (factory setting)Under frequency protection: 48.5 Hz/58.5 Hz for 50 Hz/60 Hz operationSlope: 1.2X (120%) V/HzRemote potentiometer: 1 kOhm for u00b1 10% adjustmentAccessory Input: u00b1 4.5V DC for u00b115%Temperature range: -25u00baC to +70u00baCStorage temperature range: -40u00baC to +80u00baCThermal drift: 0.5% for 20u00baC changeFuse: FST 10A 250V
