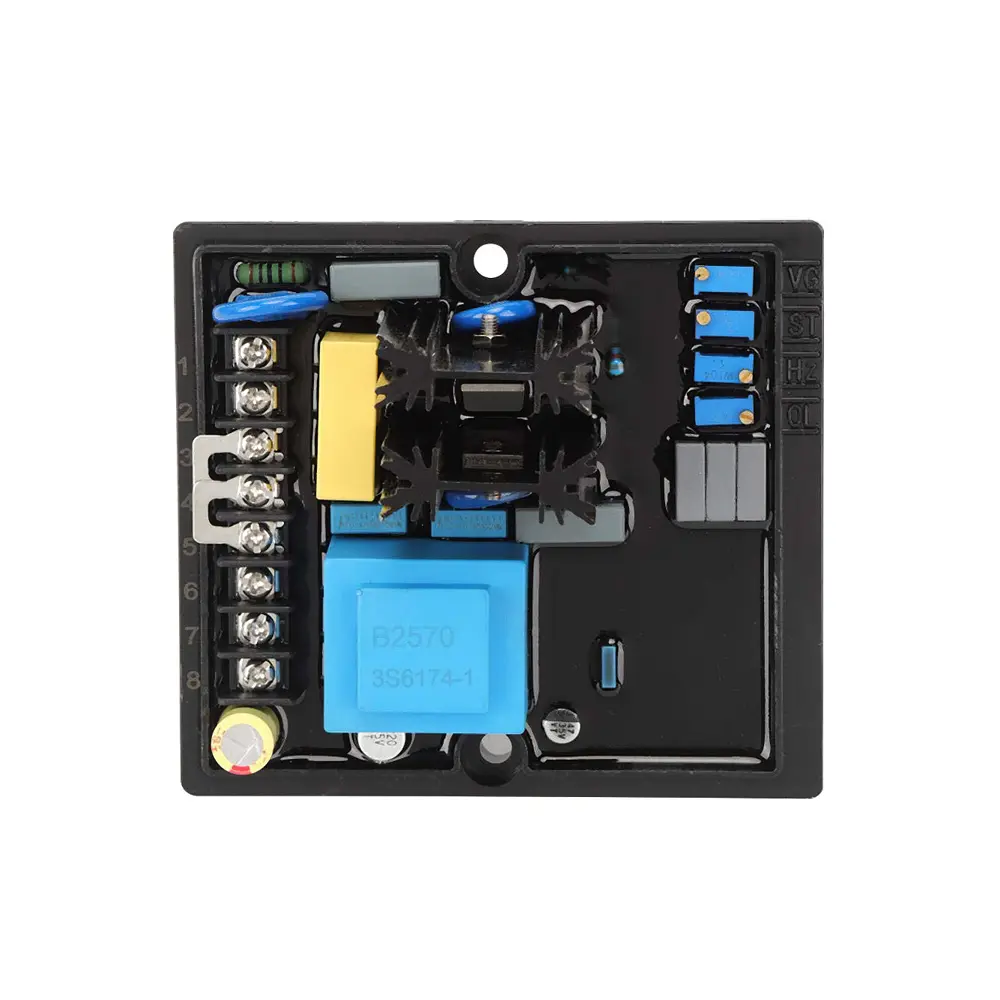

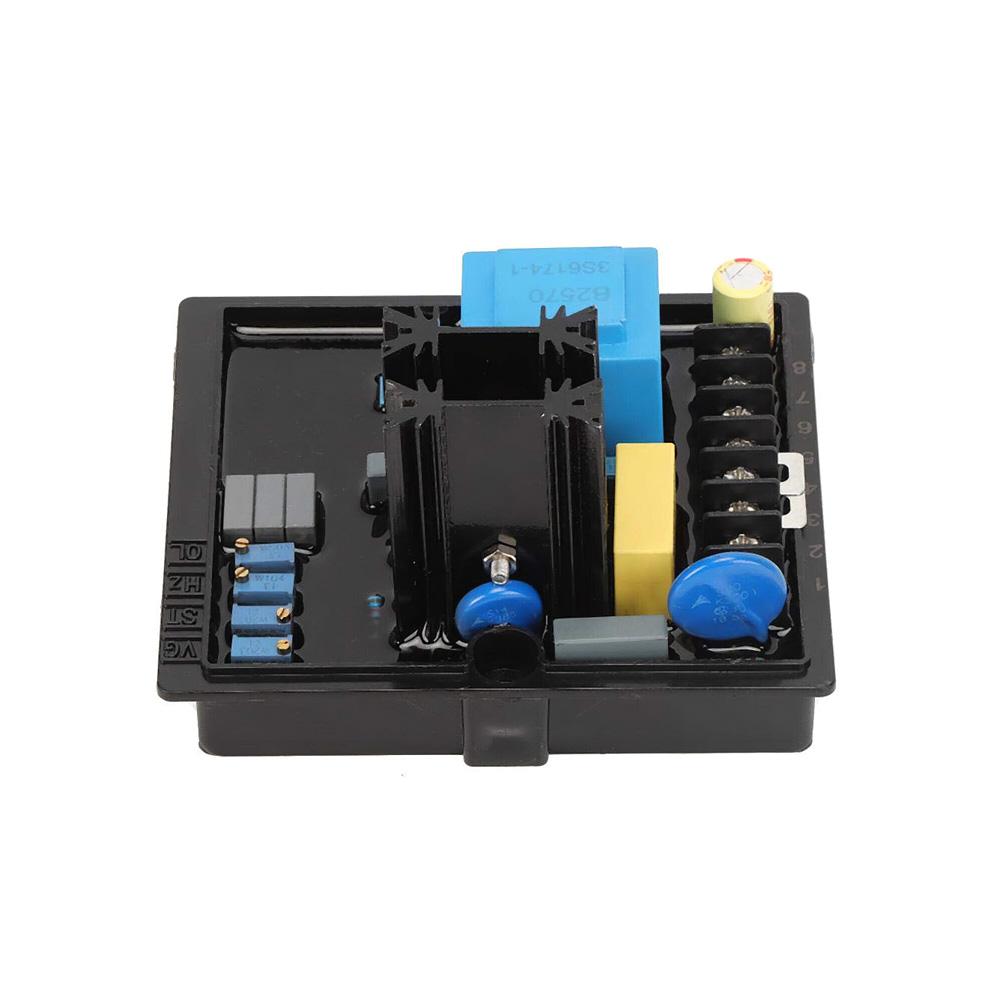

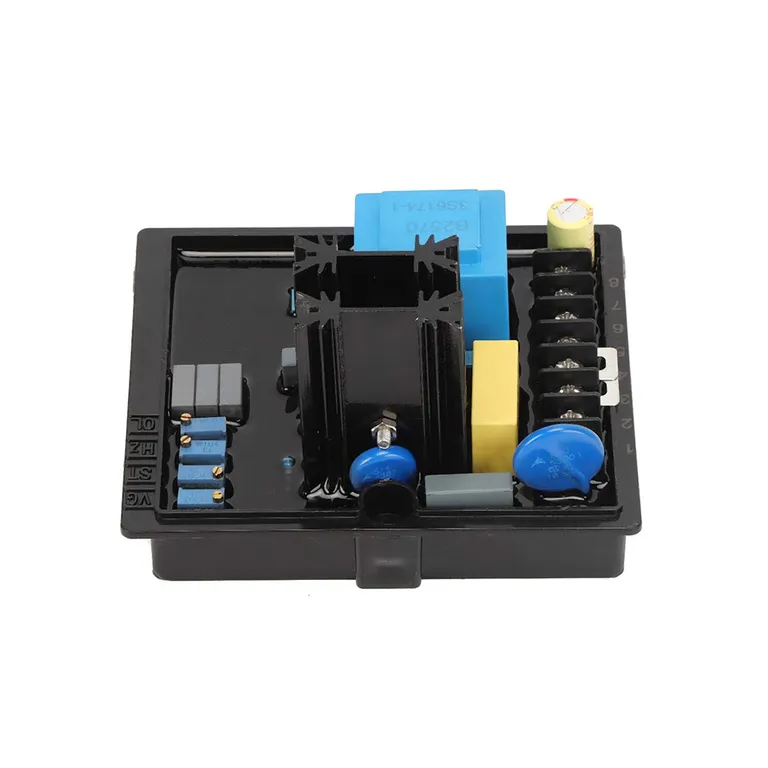

Automatic Voltage Regulator HVR-11 AVR for Linz Electric Generator

Automatic Voltage Regulator HVR-11 AVR for Linz Electric Generator

Specification:
- Supply voltage inlet:
a) 110Vac 15%,
b) 220Vac -25%/+15%
- Maximum field current: 10 Adc
- Permanent field current: 7 Adc
- Single phase reference voltage inlet: 90Vac 440Vac
- Outlet voltage setting of the alternator with multi-round trimmer
- Stability control setting with multi-round trimmer
- Intervention level setting of low frequency protection with multi-round trimmer
- Intervention level setting of over-exciting protection with multi-round trimmer
- Remote potentiometer inlet
- Possible operation at 50Hz or 60Hz
- Possible operation of alternators in parallel
Application:
For operating at 60Hz, connect regulator terminals 6 and 7 with a bridge
Packing:
AVR HVR-11 -------1Piece
English Manual------1Piece
Carring Box----------1Piece

Part number:
HVR-11,HVR11
