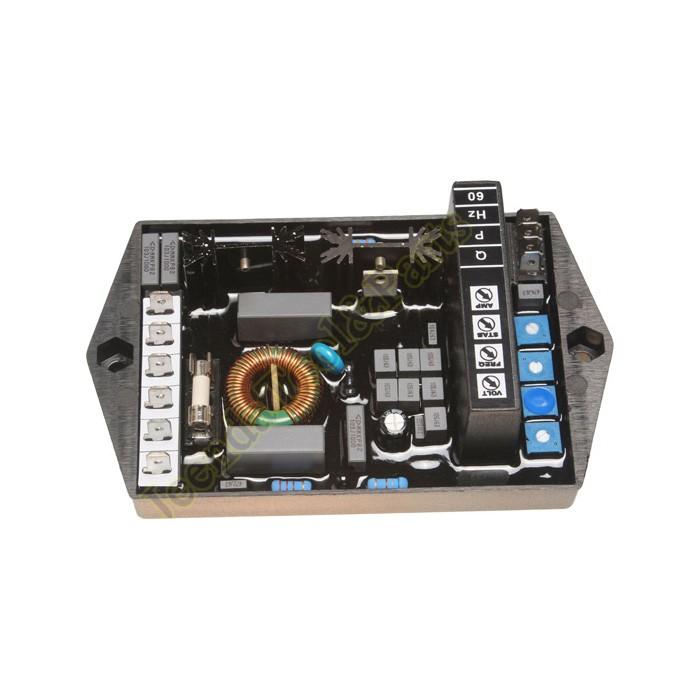

AVR M16FA655A Automatic Voltage Regulator for Marelli

AVR M16FA655A Automatic Voltage Regulator for Marelli

Part Number:
M16FA655A

Application ?strong>
The voltage regulator type ARK V? is suitable for Synchronous Generators of MARELLI MOTORI make, MJB series, size range 160-225 frames. The regulator is fully insulated in order to maintain high reliability also with severe ambient conditions (high level of humidity, dust, salt atmosphere), and in case of high vibrations level. The regulator is proper both for single and 3-phase generators.

Specification:
Regulation Accuracy:+/- 0.5% Rated Steady State Conditions
Voltage Drift:+/- 0.5% Voltage Change, for 50 C
Response Time:1 Cycle
Operating Temperature:-30 C- +70 C
Exciter Field Resistance:8?Min- 20?Max
Input/Output Data:
Supply Voltage:170~270v
Power Supply:350 Va (Max)
Power Dissipated:15w ( Max )
Voltage Sensing:170~270v
Output Voltage ( DC ) 30v
Output Current ( DC ) 5a (Max, Continuos )
Output Current ( DC ) 8a (Max Forcing One Minute)
