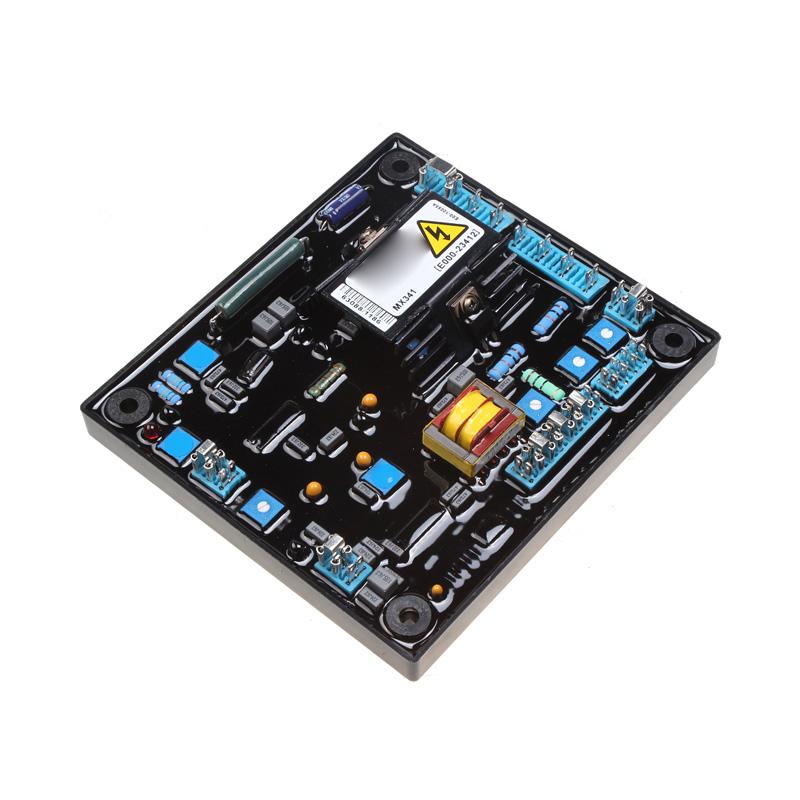

AVR MX341B Voltage Regulator Automatic for Generator

AVR MX341B Voltage Regulator Automatic for Generator

See Details:
For Generator
Key Specifications/Special Features:
automatic voltage regulator(AVR), AVR-MX341B
Features
Be applicable for separated excited alternator, brushless generator with the frequencyof 50Hz or 60Hz;
Can Be Used In Parallel Operation;
Under Frequency Roll Off Protection;
With Under Frequency Indication;
Over Excitation Protection.
Technical parameters
Power Input
Voltage 140-220VAC
Current 3A/Phase
Frequency 100-120Hz (nominal)
Sensing Input
Voltage 170-260VAC or 340-520VAC (Jumper Selectable)
Frequency 50-60Hz (Jumper Selectable)
Output
Voltage Max. 120VDC
Current 4A consecutive current output
6A instant current for 10 sec.
Excitation Resistance Min. 15
Under Frequency Protection(UFRO)
Set 95%Hz (By factory)
Slop 100-300% down to 30Hz
Adjusted Rate 1% (with 4% engine governing)
