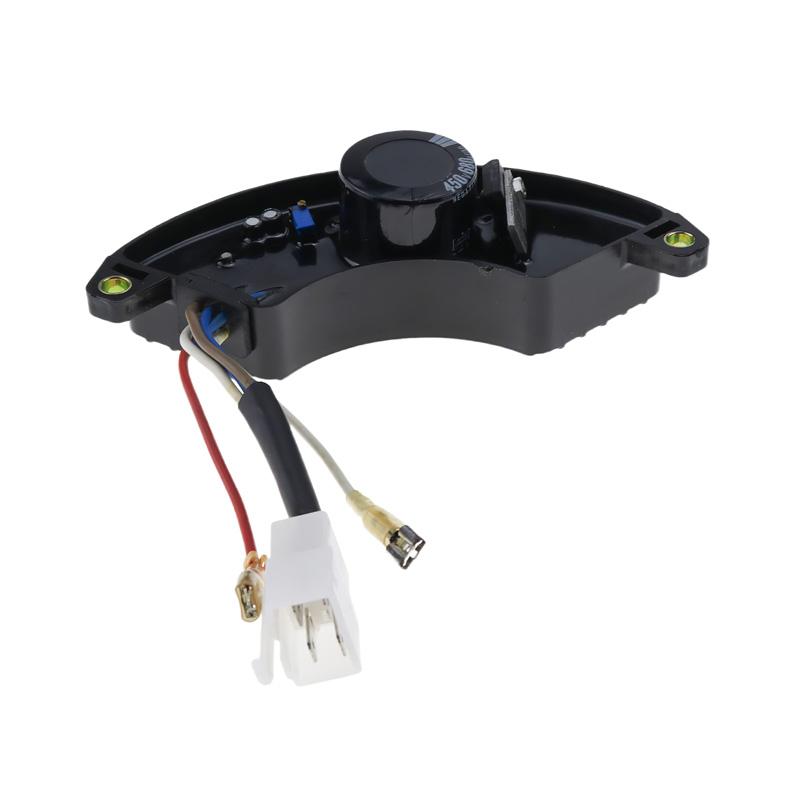

AVR Regulator AVR5-1E.05.09 for PowerTrain 4500 5500 6500 8500 9000 Watt Generator

AVR Regulator AVR5-1E.05.09 for PowerTrain 4500 5500 6500 8500 9000 Watt Generator

Part Number:
AVR5-1E.05.09Premium Replacement 7KW to 8.5KW Adjustable Generator Automatic Voltage Regulator(AVR Module) for PowerTrain Branded Xtreme Contractor Series 9HP/13HP 4500/5500/6500/8500/9000 Watt Gas Generator

Models:
PTG900G, PTG4500XCS, PTG6500, PTG6500EXCS, PT1300EG PT9000.

Product Features:
1.Buiilt-in Full-Wave Output Bridge Rectification.
2.Voltage Output Increase with Loading.
3.Stable Voltage Output with Negative Voltage Feedback.
4.Over Voltage, Over Current and Short Circuit Protection.
5.Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.

Technical Specifications:
1.Maximum Output: DC 90V 3.5A.
2.Excitation Voltage: 90V ~ 100V.
3.Feedback Voltage: 14V ~ 24V with an Average of 18V.
4.Frequency: 50/60Hz.
5.AC Voltage Output: 120V/240V.
6.Auto Voltage Adjusting Accuracy: ? 1%.
7.Maximum Temperature Rise: 130C or 266F.
8.Continuous Working Time: ?20 Hours.
9.Installation-Center Distance: 140 1mm (about 5.5 in).
