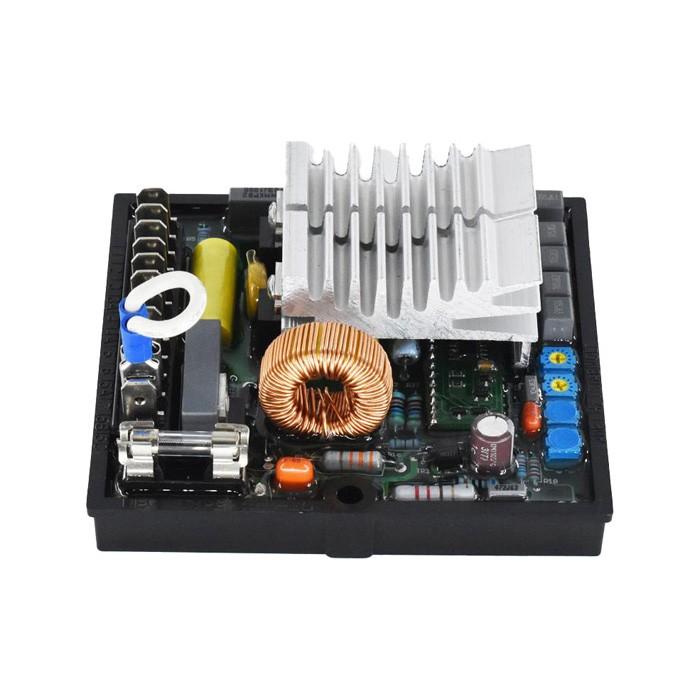

AVR SR7 Automatic Voltage Regulator for Mecc Alte Generator SR7-2G

AVR SR7 Automatic Voltage Regulator for Mecc Alte Generator SR7-2G
Part Number:
SR7-2G,SR72G,SR7/2G,330430237,064-86500,P064-86500,06486500,P06486500

Application:
Electric Generator AVR SR7-2G
Sensing Input:Terminal 1,2 3,4 5,6 Can be connected to Y or 220~480VAC Single Phase 50/60HZ
Power Input:50~280VAC (1,2) 50/60HZ
Output Voltage:Maximum 90VDC @ 220VAC Harmonic Wave
Output Current:Continuous 6A Maximum 8A for 10 sec
Under Frequency Protection:U/F Range 42~60HZ

The SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine.
1.SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator.
2. SR7 running and during starting, also equipped with a complete protection system against operation conditions that could be dangerous for the machine.
3.Suitable for being used with all alternators and is standard supply for power outputs below 85 KV, both three-phase and single phase
