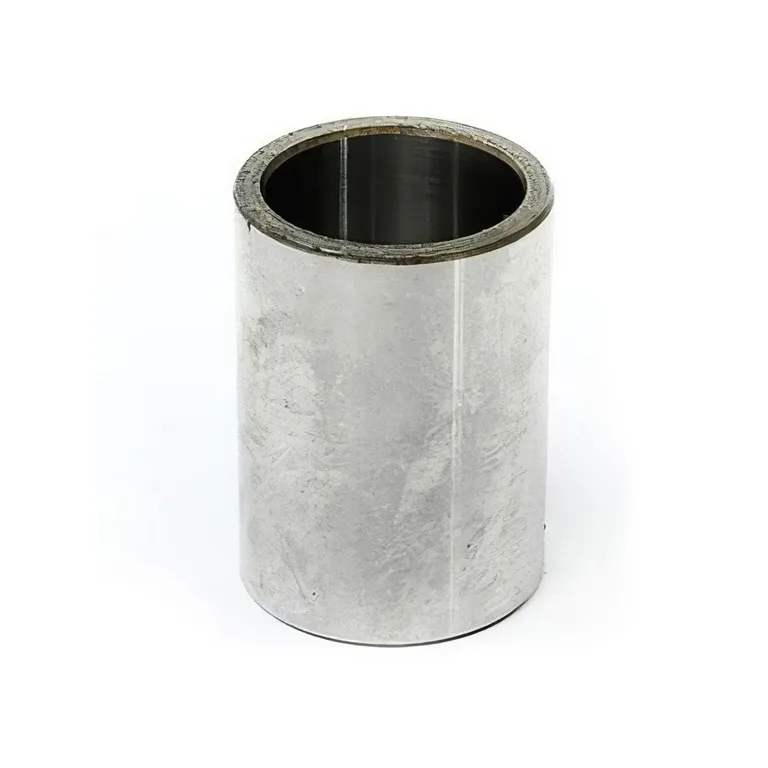

Bushing 109268A1 for CASE 580N 580SN 570LXT 570MXT 570NXT 580SL 590SN 590SL 580SM 580SM+ 590SM 580M 580L 590SM+ 590L
Part Number:
109268A1
Applications:
Size:40.3mm ID x 50mm OD x 35mm L
CASE Loader Backhoe Models:580L, 580L Series II, 580M, 580M Series II, 580M Series III, 580N, 590SN, 580SL, 580SL Series II, 590SL, 590SL Series II, 580SN, 580SN WT, 580SM, 580SM Series II, 580SM Series III, 580SM+ Series II, 580SM+ Series III, 590SM, 590SM Series II, 590SM Series III, 590SM+ Series III
CASE Landscaper Models:570LXT, 570LXT Series II, 570NXT Tier 4A, 570MXT, 570MXT Series III
See Details:
(570LXT) - LOADER LANDSCAPER (1/94-12/97)
(570LXT) - SERIES-2 LOADER LANDSCAPER - ASN JJG0225755 (1/98-12/01)
(570MXT) - LOADER LANDSCAPER (1/01-12/08)
(570MXT) - SERIES 3 LOADER LANDSCAPER TIER ASN N8C510600 (1/08-12/12)
(570NXT) - LOADER LANDSCAPER - TIER 4A ASN NCC570600 (1/12-12/14)
(580L) - LOADER BACKHOE (NORTH AMERICA) (2/97-12/97)
(580L) - SERIES 2 LOADER BACKHOE - ASN JJG0239360 (2/97-12/00)
(580M) - LOADER BACKHOE (NA) - ASN JJG0285001 (9/00-12/04)
(580M) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C303000 (2/04-12/08)
(580M) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C500000 (2/08-12/10)
(580N EP) - BACKHOE LOADER - TIER 4B (2/15-)
(580N EP) - BACKHOE LOADER (LIVERY) - TIER 4B (10/16-)
(580N) - BACKHOE LOADER - TIER 3 NRC (3/15-)
(580N) - BACKHOE LOADER - TIER 4A - FROM PIN NCC560000 (3/12-2/15)
(580N) - BACKHOE LOADER - TIER 4B (2/15-)
(580N) - BACKHOE LOADER (LIVERY) - TIER 3 NRC (10/16-)
(580N) - BACKHOE LOADER (LIVERY) - TIER 4B (10/16-)
(580N) - LOADER BACKHOE (TIER 3) (4/10-12/12)
(580SL) - LOADER BACKHOE (5/98-12/00)
(580SL) - SERIES 2 LOADER BACKHOE - ASN JJG0258464 (4/94-12/00)
(580SM) - LOADER BACKHOE (NORTH AMERICA) (12/99-12/04)
(580SM) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C304000 (2/04-12/08)
(580SM) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000 (2/08-12/10)
(580SM) - SERIES 3 TLB TIER 3 DECOMPLEXITY - COMPLETED FIGURES (2/08-12/10)
(580SM+) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C307000 (2/04-12/08)
(580SM+) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000 (2/08-12/08)
(580SN WT) - BACKHOE LOADER - WIDE TRACK - TIER 4B (2/15-9/16)
(580SN WT) - BACKHOE LOADER (LIVERY) - WIDE TRACK - TIER 3 NRC (10/16-)
(580SN WT) - BACKHOE LOADER (LIVERY) - WIDE TRACK - TIER 4B (10/16-)
(580SN WT) - BACKHOE LOADER, WIDE TRACK - TIER 3 (7/09-12/12)
(580SN WT) - BACKHOE LOADER, WIDE TRACK - TIER 3 NRC (3/15-9/16)
(580SN WT) - BACKHOE LOADER, WIDE TRACK - TIER 4A (3/12-2/15)
(580SN) - BACKHOE LOADER - TIER 3 NRC (3/15-)
(580SN) - BACKHOE LOADER - TIER 4A - FROM PIN NCC564000 (3/12-2/15)
(580SN) - BACKHOE LOADER - TIER 4B (2/15-9/16)
(580SN) - BACKHOE LOADER (LIVERY) - TIER 3 NRC (10/16-)
(580SN) - BACKHOE LOADER (LIVERY) - TIER 4B (10/16-)
(580SN) - LOADER BACKHOE - TIER 3 (4/10-12/12)
(580SN) - LOADER BACKHOE - TIER 3 NRC (3/12-2/15)
(590L) - LOADER BACKHOE (1/98-12/98)
(590SL) - LOADER BACKHOE (3/95-12/98)
(590SL) - SERIES 2 LOADER BACKHOE - ASN JJG0210575 (3/98-12/00)
(590SM) - LOADER BACKHOE (NORTH AMERICA) (12/01-12/04)
(590SM) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C309000 (1/03-12/08)
(590SM) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500 (2/08-12/10)
(590SM+) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C509200 (2/08-12/10)
(590SN) - BACKHOE LOADER - TIER 3 NRC (3/15-)
(590SN) - BACKHOE LOADER - TIER 4A (3/12-2/15)
(590SN) - BACKHOE LOADER - TIER 4B (2/15-9/16)
(590SN) - BACKHOE LOADER (LIVERY) - TIER 3 NRC (10/16-)
(590SN) - BACKHOE LOADER (LIVERY) - TIER 4B (10/16-)
(590SN) - LOADER BACKHOE - TIER 3 NRC (3/12-2/15)
(590SN) - LOADER BACKHOE (TIER 3) (11/10-12/12)
| original | 109268A1 |
