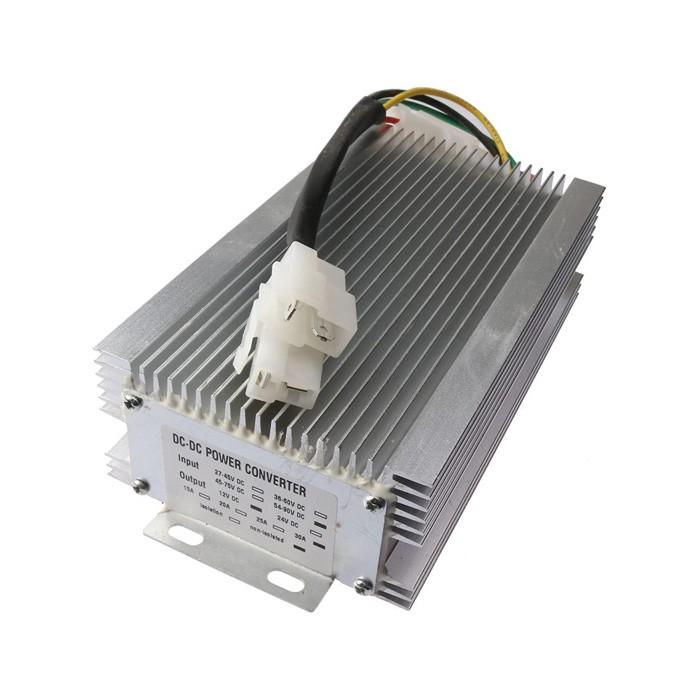

DC Converter 72V to 12V Step Down Reducer 0A~30A 30amp for Golf Cart EZOGO

DC Converter 72V to 12V Step Down Reducer 0A~30A 30amp for Golf Cart EZOGO

Introduction:
DC/DC converter applies advanced technology and is configured specifically for electric vehicles,like golf cart,electric fork-lift truck,tourist car and so on.Besides it can also applied to solar system and wind power system.It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology. Now it comes with automatic current limit controller and auto reset.

Specifications
Input Voltage: 54V to 90V
Output Voltage: DC 12V 2%
Output Current: 30A (max)
Maximum Efficiency: ?3%
Waterproof: IP55
Dimension: 205*92*45mm

Features
Inside short circuit and over current protection.
Wide range input voltage, 20% uitable for stoage battery application.
Suitable for all kinds of environment,Protection class IP55
