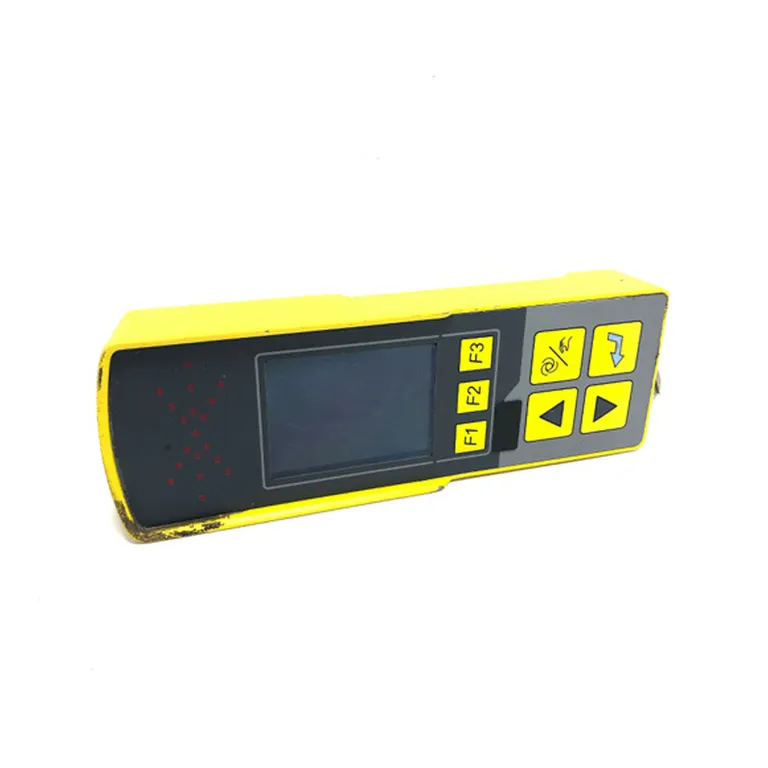

Digital Controller 04-25-10500-A02 for Dynapac

Moba-Matic II Digital Controller 04-25-10500-A02 for Dynapac

Part Number:
04-25-10500-A02,042510500A02

Applications:
For Dynapac

Technische Daten/Technical data:
Betriebsspannung: 11 ?30 DC
Voltage range:
Stromaufnahme: 300 mA @ 24 V(1)
Current consumption
Leistungsausgang: ON/OFF, PNP, NPN
Power outputs PROP, PNP
Max. Strom ON/OFF: 3 A
Max Current
Max. Strom PROP: 2,5 A
Max. current PROP
Schnittstelle: 2x CAN ISO 11898 24 V
Interface 125 , 250 kBit/s
Arbeitstemperaturbereich: -20 ?+ 70 C
Operating temperature range
Lagertemperaturbereich: -30 ?+ 80 C
Storage temperature range
Schutzart: IP 67

When placing an order, please contact us with engine /air compressor nameplate so that we can check it (or prepare the operating procedures more accurately for you).
