Description

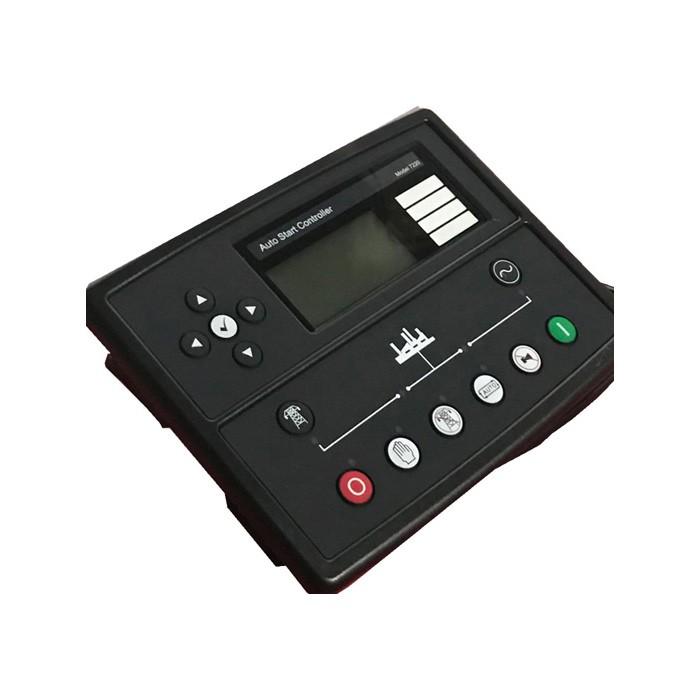

Electronic Controller DSE7220 7220 Control Module Panel for Deep Sea
See Details:
Operating Voltage: DC 8.0V to 35.0V,Continuous
Power Supply: Power Consumption
Alternator Input Range: 15V - 360 V AC (ph-N)
3-Phase4-Wire: 26V - 620 V AC (ph-ph)
3-Phase3-Wire: 15V - 360 V AC (ph-N)
Single-phase2-wire: 15V - 360 V AC (ph-N)
Alternator Frequency: 50/60Hz
Speed Sensor voltage: VPP2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency: 10000Hz (max)
Start Relay Output: 16Amp Controller Power Voltage Output
Fuel Relay Output: 16Amp Controller Power Voltage Output
Programmable Relay Output: 17Amp 250VAC Voltage Free Output
Programmable Relay Output: 27Amp 250VAC Voltage Free Output
Programmable Relay Output: 316Amp 250VAC Voltage Free Output
Programmable Relay Output: 416Amp 250VAC Voltage Free Output
Case Dimension: 210mm x 152 mm x 48 mm
Panel Cutout: 186mm x 141mm
C.T. Secondary: 5A Rated
Working ConditionsTemperature: (-25~+70) ?Humidity:(20~90)%
Storage ConditionTemperature: (-40~+85) ?/strong>
Protection LevelIP55: When waterproof rubber seal installed between the controller and panel fascia.
IP42: When waterproof rubber seal is not installed between the controller and panel fascia.
Insulating IntensityObject: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Note:
When placing an order, please contact us with engine /air compressor nameplate so that we can check it (or prepare the operating procedures more accurately for you).
Compatibility & Specifications
| original | DSE7220 |
