Description

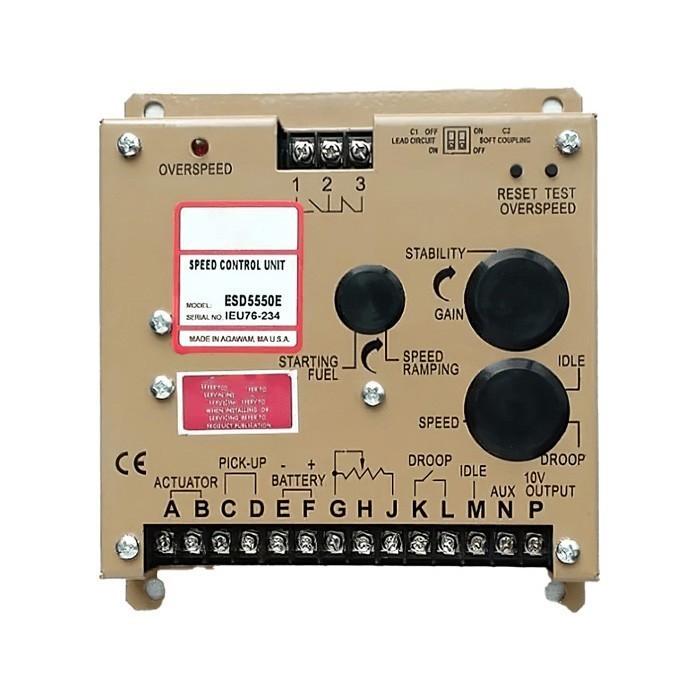

Engine Speed Governor Speed Controller ESD5550E for Generator Parts
| PERFORMANCE | |||
| Isochronous Operation/Steady State Stability | 0.25% or better | ||
| Speed Range/Governor | 1K-7.5K Hz.continuous | ||
| Speed Drift with Temperature | 1% Maximum | ||
| Idle Adjust CW | 60% of set speed | ||
| Idle Adjust CCW | Less than 1200 Hz. | ||
| Droop Range | 1-5% regulation | ||
| Droop Adj. Max. (K-L Jumpered) | 400 Hz., 75Hz.per 1.0 A Change | ||
| Droop Adj. Min. (K-L Jumpered) | 15 Hz., 6 Hz.per 1.0 A Change | ||
| Speed Trim Range | 200 Hz. | ||
| Remote Variable Speed Range | 500-7.5 Hz.or any part thereof | ||
| Terminal Sensitivity | J | 100 Hz., 15 Hz/Volt @ 5.0 K Impedance | |
| L | 735 Hz., 60 Hz/Volt @ 65 K Impedance | ||
| N | 148 Hz., 10 Hz/Volt Meg. Impedance | ||
| P | 10V DC Supply @ 20 ma Max. | ||
| Speed Switch Adjustment Range | 1000-10000 Hz. | ||
| ENVIRONMENTAL | |||
| Ambient Operating Temperature Range | -40 to +85C | ||
| Relative Humidity | Up to 95% | ||
| All Surface Finishes | Fungus Proof and Corrosion Resistant | ||
| INPUT POWER | |||
| Supply | 12 or 24V DC Battery Systems (Transient and Reverse Voltage Protected) | ||
| Polarity | Negative Ground (Case Isolated) | ||
| Power Consumption | 50 ma continuous plus actuator current | ||
| Actuator Current Range @ 25C - (Inductive Load) | Min. | 2.5 Amps | |
| Max. | 10 Amps continuous | ||
| Speed Sensor Signal | 0.5-120 Volts RMS | ||
| Speed Switch Relay Contacts(N.O. And N.C.) | 10 Amps | ||
| RELIABILITY | |||
| Vibration | 1G @ 20-100Hz. | ||
| Testing | 100% Functionally Tested | ||
| PHYSICAL | |||
| Weight | 1.8 lbs. (0.82kg) | ||
| Mounting | Any Position, Vertical Preferred | ||
