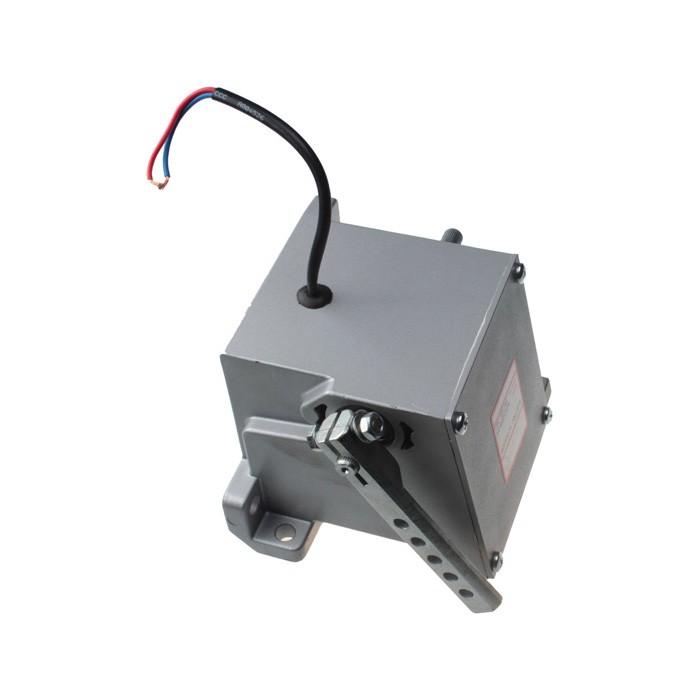

External Electronic Actuator ADC225-24V Generator Automatic Controller
Specifications:
PERFORMANCE:
Available Torque Max2.2Lb-ft(2.7Nm)
Maximum Operating Shaft Angular Travel 25+1degree CW/CCW
POWER INPUT:
Operating voltage 24VDC
Normal Operating Current at 12VDC
1.5 A at 24VDC
Maximum CurrentContinuously Rated at 12VDC
4 A at 24VDC
ENVIROMENTAL:
Temperature Range -54 to 95
Relative Humidity up to 100%
All Surface finishes Fungus proof and corrosion resistant
PHISICAL:
Weight 3.5kg
Mounting Any position, electrical connector at the top preferred
RELIABILITY:
Vibration up to 20G @50-500 Hz
Testing 100% Tested
MATING HARDWARE
Connector Supplied With Actuator
Lever LE1500-2
Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)&BR101(Left Hand)----(Don't include!)
Wiring Harness HD225 4ft. harness supplied with actuator, other length available from Actuator--------------(Don't include!)
Note:
When placing an order, please contact us with engine /air compressor nameplate so that we can check it (or prepare the operating procedures more accurately for you).
| original | ADC225S-24,ADC225S24 |
