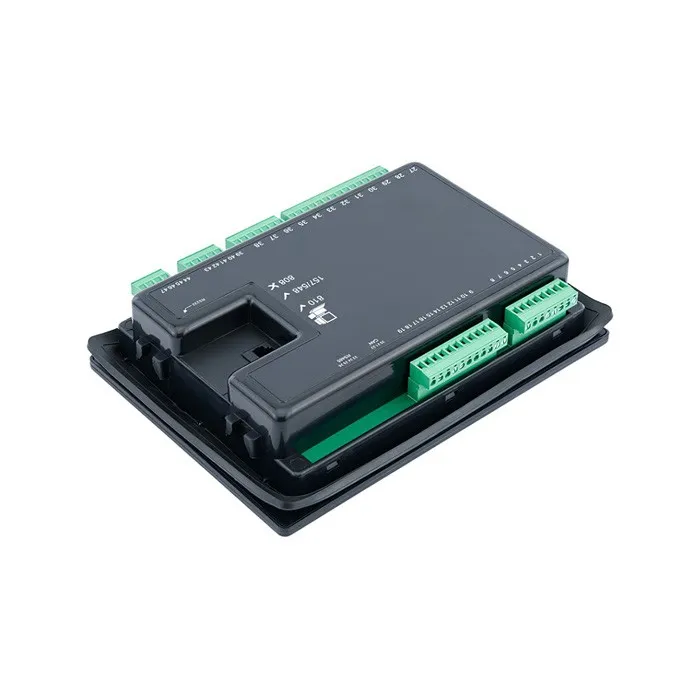

Generator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea
Category: Electrical Parts
$137.40
SKU: ES40811
In StockGenerator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea
Details:
Generator Controller 5120The Model 5120 is an automatic mains failure control module and includes all the feature of the BC5110 plus the ability to monitor amain(utility) supply.Upon the detection of a mains(utility) failureThe module automatically starts the generating set. Once the mains power has been restoredit, instructs the generating set to stop.Dedicated outputs are provide for the control of both the mains(utility) and generator switching devices.This feature combined with the inbuilt incoming main(utility) supplyMain features1.micro-computer control2. automatically activated, the shutdown3. real-time display4. visualization of the police state of graphics 5. quick information display unit6. LED and LCD alarm instructions7. Programmable relay output Control Features1. Emergency Parking Control2. Automatic Car Plate3. StartDelay Control4. LocalManually Start / Shutdown5. RemoteAutomatic Start / Shutdown6. Pre-warm,Pre-controlled oil7. Coldmachine, Parking For Electricity8. ATSswitch controlDisplay Data1. Speed of Generator2. Battery Voltage3. Oil Pressure of Engine 4. Water Temperature of Engine5. Generating Unit Output Frequency Of Exchange6. Operating Time of Generator Set7. Load-phase AC current8. Exchange phase VoltagePower Supply:8 to 35 Vdc ContinuousCranking Dropouts:Able to survive for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the need for internal batteries.Max Current:Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24VStart Relay Output:16 Amp DC at supply voltage.Fuel Relay Output:16 Amp DC at supply voltage.Auxiliary Relay Outputs:5 Amp DC at supply voltage.Charge Fail / Excitation Range to 35 VAlternator Input Range: 15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%)Alternator Input Frequency:50 - 60 Hz at rated engine speed (Minimum:15V AC Ph-N)Magnetic Pick-up Voltage Input Range: +/- 0.5 V to 70 V PeakMagnetic Input Frequency:10,000 Hz (max) at rated engine speedOperating Temperature Range:-30 to +70CPanel Cutout:220mm x 160mm ( 8.7?x 6.3?
