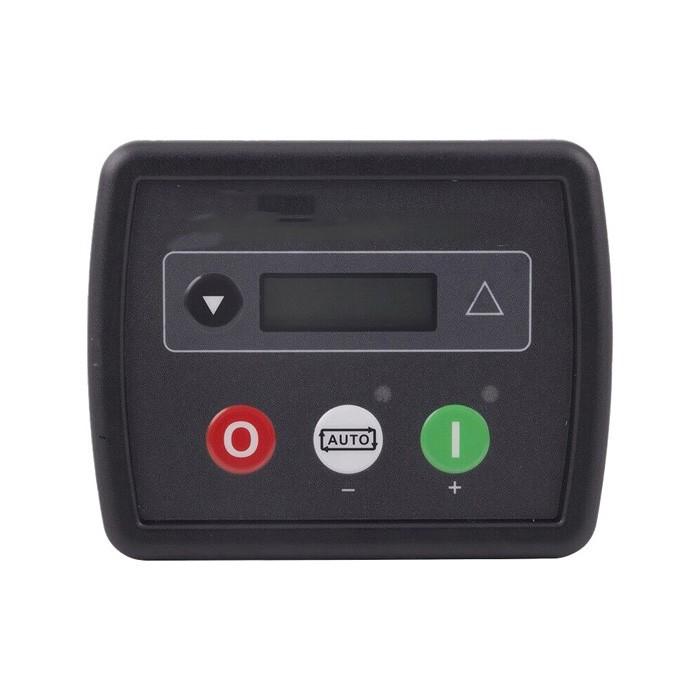

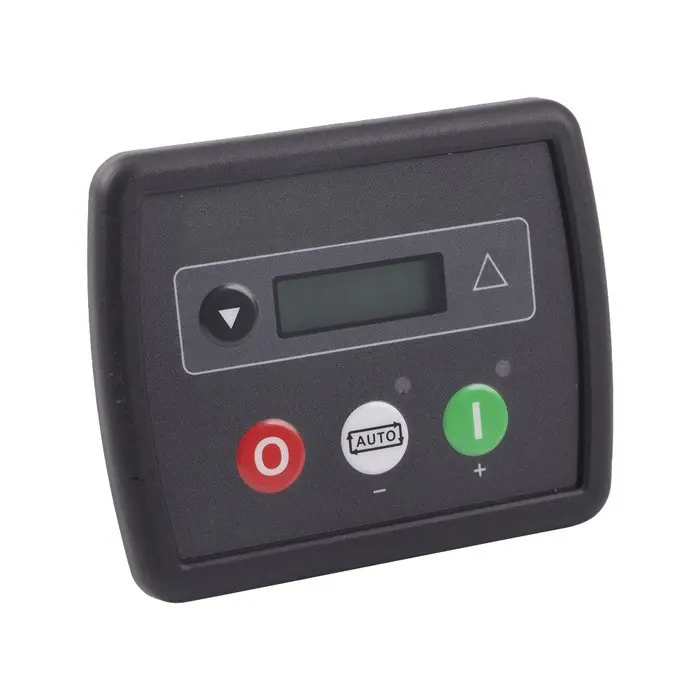

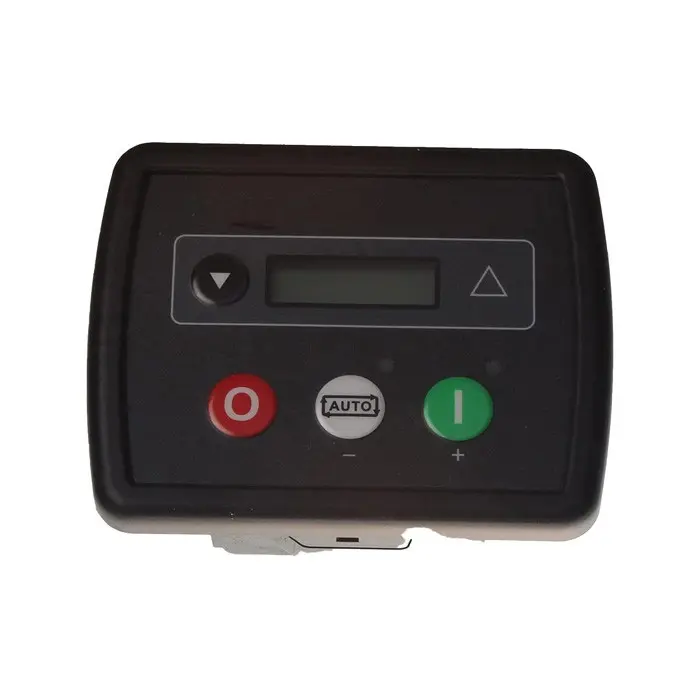

Generator Controller Module DSE3110 MPU for Deep Sea

Generator Controller Module DSE3110 MPU for Deep Sea

Condition:
New Original

Note:

The 100% Genuine part doesn't offer any warranty, return or exchange service. Please confirm according to the correct part number instead of just a model!

DC Supply
ContinuousVoltage Rating: 8 to 35 V Continuous.
Cranking Dropouts: Able to survive for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achineved without the need for internal batteries.
Charge Fail/ Excitation: 8 to 35 V fixed power source 2.5W
Nominal Standby Current: 23 mA at 12 V, 18 mA at 24 V
MAXIMUM OPERATING CURRENT: 35 mA at 12 V, 30 mA at 24 V

Outputs
OUTPUT A (FUEL): DC at supply voltage
OUTPUT B (START): DC at supply voltage
AUXILIARY OUTPUTS C & D: DC at supply voltage

GENERATOR
VOLTAGE RANGE: 15 333 V AC (L-N)
FREQUENCY RANGE: 3.5 Hz to 75 Hz

MAGNETIC PICK-UP
VOLTAGE RANGE: 0.5v to 70v
FREQUENCY RANGE: 10,000 Hz (max)

DIMENSIONS
OVERALL: 9.8 cm x 7.9 cm x 4.0 cm
PANEL CUT-OUT: 8 cm x 6.8 cm
MAXIMUM PANEL THICKNESS: 8 cm

Feature
Back-lit icon LCD display
Front panel editing
LED and LCD alarm indication
Power Save mode
CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
PC configurable
6 Digital inputs
4 Outputs (2 configurable on Magnetic Pick up/Alt., 4 configurable on CAN version)
