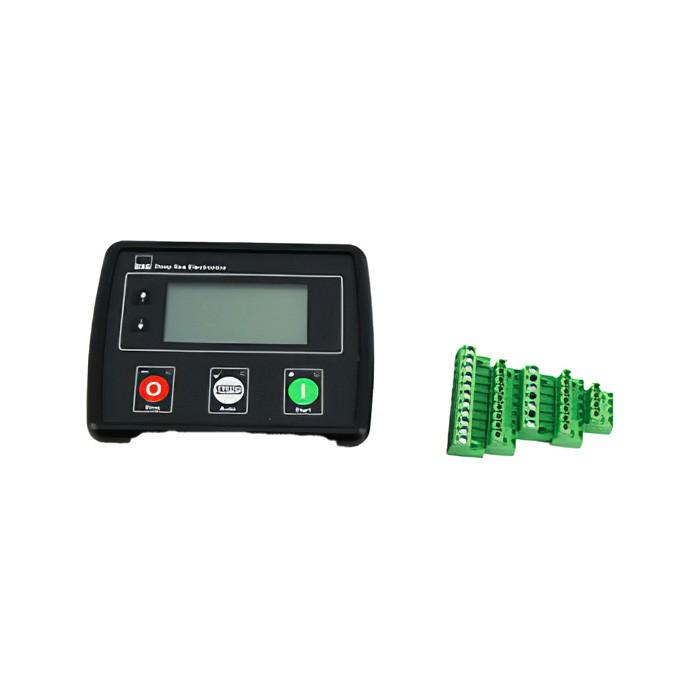

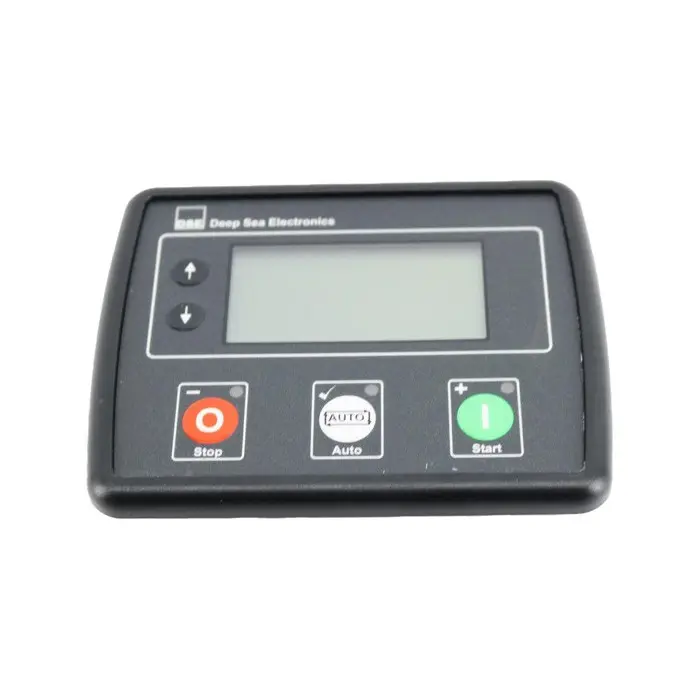

Genset Control Panel Generator controller Original DSE4520 for Deep Sea

Original DSE4520 Genset Control Panel Generator controller for Deep Sea

Condition:
New Original

Note:
This original part does not offer returns or exchange service.

Details:
The DSE4520 is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.
PRODUCT VARIANTS
4520-03 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
85 mA at 12 V, 96 mA at 24
MAXIMUM STANDBY CURRENT
51 mA at 12 V, 47 mA at 24 V
MAXIMUM SLEEP CURRENT
35 mA at 12 V, 32 mA at 24 V
MAXIMUM DEEP SLEEP CURRENT

MAINS?(UTILITY)
VOLTAGE?RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY?RANGE
3.5 Hz to 75 Hz
OUTPUT A (FUEL)
10 A short term, 5 A?continuous,

at supply voltage

OUTPUT B (START)
10 A short term, 5 A?continuous,

at supply voltage

AUXILIARY OUTPUTS C, D, E & F
2 A DC at supply voltage --

GENERATOR
?VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)

Note:
When placing an order, please contact us with engine /air compressor nameplate so that we can check it (or prepare the operating procedures more accurately for you).
