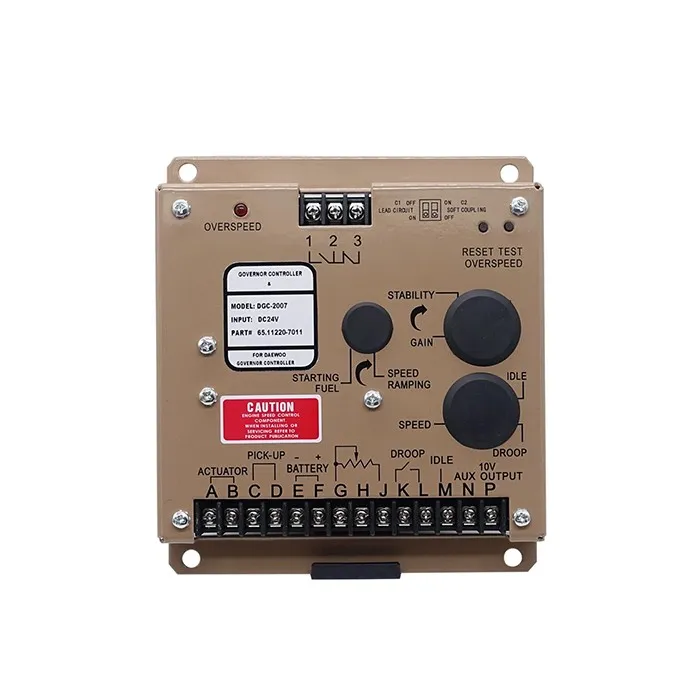

Governor Speed Controller DGC-2007 65.11220-7011 for Doosan Engine

Governor Speed Controller DGC-2007 65.11220-7011 for Doosan Engine

Part Name:Controller ( for Marine Electric Governo )

Part Number:?DGC-2007, 65.11220-7011, 65.112207011, 6511220-7011, 65112207011

Specification:
PID speed control
Independent or parallel operation
5 display LEDs (Power/Pickup/Run Speed/Idle Speed/Over Speed)
3 relay output channels(Over Speed/Crank Speed/Run Speed)
Droop operation
Speed control by connecting to an external resitor (ADJ)
Speed control with inputting external voltage (AUX)
Automatic stop with overspeed setting
Environment of Use:
Temp. negative 20 to 80C
Humid. 0 to 98%
Input Voltage (E-F) DC 12 to 32 V
PickUp(C-D) AC or more
Droop control(K-L) Open/ Short
Speed control(G-J) Resistance value (Refer to Control)
Speed control(G-N) DC negative 3 to 3 V
Output:
Actuator control(A-B) 120W ( DC24V/5A , DC12V/10A)
Relay Output(1 to 9) AC250V/10A, DC100V/5A
LED Display Power/PickUp/Crank/Run/OverSpeed Control
Single Turn Volume Gain/Stability/Droop/Idle/Speed Ramping/Starting Fuel
Multi Turn Volume Speed/Crank LED/ Run LED/ Over Speed & LED
External Resistor Speed Control 1k/ 900Hz, 5k/2400Hz, 10k/3000Hz, 25k/3500Hz, 50k/3700Hz
External Voltage Speed Control A variance of 2,000 RPM per (number of teeth in the gear: 160)
