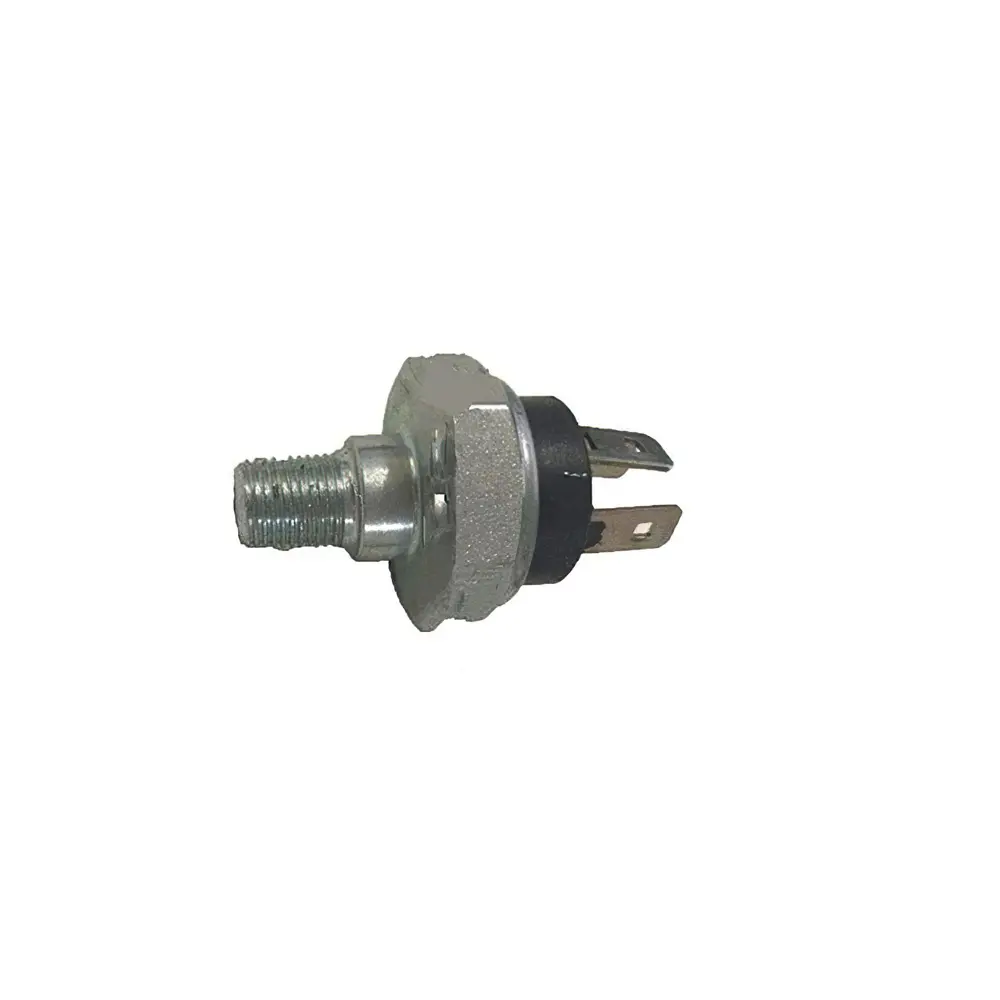

Oil Pressure Protection Switch 76580-00000100-01 for Honeywell 5000 Series

Oil Pressure Protection Switch 76580-00000100-01 for Honeywell 5000 Series

Honeywell 5000 Series - Extended Duty Pressure Switch With Direct Action Blade Contacts:
5000 Series pressure switch with standard terminal.These switches sense a change in the pressure, opening or closing an electrical circuit when the designated set point is reached

Features:
Stands up to extended duty applications
Factory set, capable of field adjustment
Direct acting blade - gold-plated contacts
No dead band
Kapton diaphragm for compatibility with a variety of fluids
Various electrical connections and terminations
Optional rubber boot

Application:
Engine transmission
Hydraulics and brakes
Power steering
Fuel pressure
ABS brakes
Cruise control
Oxygen concentrators
Dental air
Embalming equipment
Generators/compressors
Pool/spa water pressure

Specifications:
Adjustment Range:8 to 13 PSI (55.16 to 89.63 kPa)
Connection:1/8-27 NPT Male Thread
Current Rating:15 A
Current Consumption:15, 8, (Resistive),1,0.5 A (Inductive)
Power Supply:6, 12, 24 VDC (Resistive),120,240 VAC (Inductive)
Pressure Operating:10 PSI (68.95 kPa)
Series:5000 Series
Set Point:8 to 13 psi
Size Port:1/4" NPT
Temperature Ambient:-40 to 121C
Voltage Rating:6,12,24 VDC (Resistive),120,240 VAC (Inductive)
