Original Electric AVR BE2000E AVR GM24876-S Automatic Voltage Regulator for Marathon DVR DVR2000E UPS

Original Electric AVR BE2000E AVR GM24876-S Automatic Voltage Regulator for Marathon DVR DVR2000E UPS

Part Number:
GM24876-S

Details:

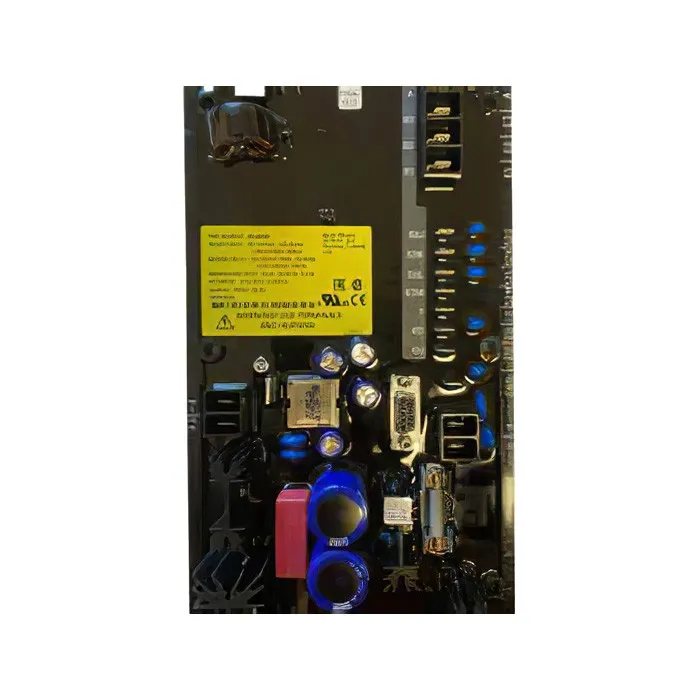

Original PartsManufactured by Basler Electric, the BE2000E is a digital automatic voltage regulator with a wide range of functionalities and features. Brushless type, this regulator can work with PMG excitation generators. It also comes with the VAR-PF option that controls and parallels among generators as well as the mains utility.Basler BE2000E is a perfect replacement for Marathon Electric machines that come with DVR2000 and DVR2000EC voltage regulators. It is a solid-state, microprocessor-based control regulator that works by controlling the current that flows into the generator exciter. The input power to the DVR2000E originates from multiple-pole, high-frequency, Permanent Magnet Generator (PMG).Basler BE2000E AVR is housed in an encapsulated package that is designed for behind-the-panel mounting. Its front panel LED indicators herald the regulator status and system conditions. The regulator connections are made through quarter-inch, easy to connect terminals located on the rear panel. The 9-pin DB-9 type connector on the rear panel provides the link between the regulator and an IBM compatible personal computer.Key specifications:Soft start control with an adjustable, time setting in AVR control mode Programmable stability settings Up to four control modes ?Manual Current Regulation (FCR), Automatic Voltage Regulation (AVR), Reactive Power Regulation (VAR), and Power Factor Regulation (PFR). Single or three-phase generator voltage regulation/sensing in AVR mode Overtemperature protection Under-frequency Volt and Hertz regulation A single common output relay for trip functions as well as alarm indication.

Note:
This original part does not offer returns or exchange service.Please confirm according to the correct part number instead of just a model.
