Overhaul Rebuild Kit for Kubota D782 Engine Zero Turn Mower ZD1011 ZD321 ZD321N ZD323 ZG332LP ZG332P ZP330LP ZP330P
Category: Engine Spare Parts
$529.11
SKU: ES25907
In StockOverhaul Rebuild Kit for Kubota D782 Engine Zero Turn Mower ZD1011 ZD321 ZD321N ZD323 ZG332LP ZG332P ZP330LP ZP330P
Note:
The Cylinder Liner is a Semi-finished type
Application:
Models with Kubota D782 Engine
Refer to Kubota Tractor B7300HSD, B7400HSD, B7410D, BX1800D, BX1830D, BX1850D, BX1860, G1900, G1900-S, G2160/G2160-DS/G2160AU, GF1800, GF1800E, GR2100, GR2110, GR2120, GR2120B, K-008, K-008(>=20001), K008-3(KTC/KCL), T1600H, T1600H-EUROPE, T1600H-G, TG1860, U15, ZD18, ZD18F, ZD21, ZD21F, ZD221, ZD321, ZD321N, not only these models.
Piston Part Number:
1G688-21112,1G68821112
Piston Ring Part Number:
16853-21050,1685321050
Cylinder Liner Part Number:
16851-02310,1685102310
Piston Size:
Total Length(TL):56.0mm
Diameter:67mm
Cylinder Liner Size:
Total Length(TL):135.0mm
Inner Diameter(ID):67.0mm
Outer Diameter(OD):70.5mm

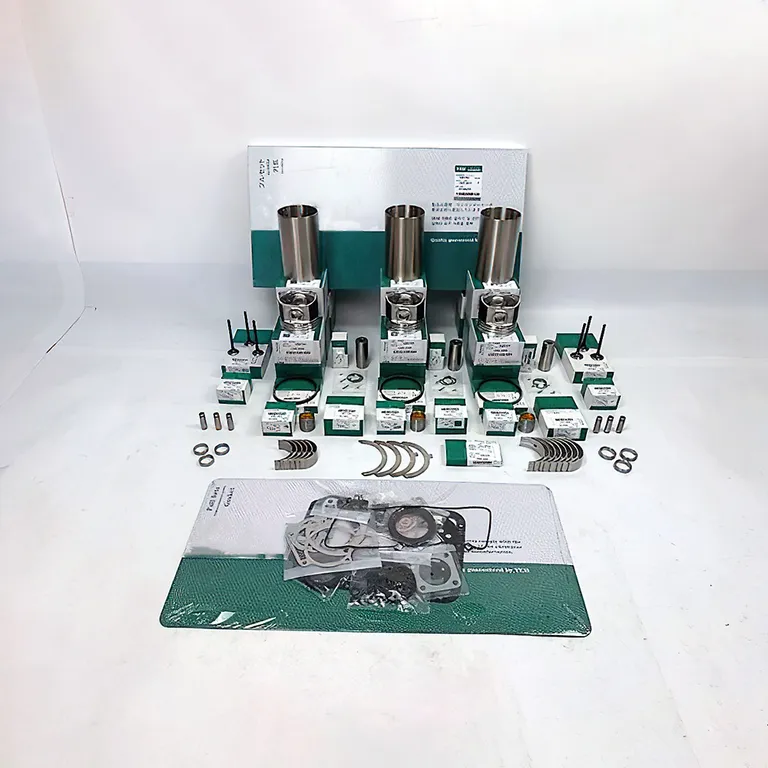

Content:
1 Set of Overhaul Gasket Kit
3 Cylinder Liners, Semi-finished product
3 Pistons, STD
3 Piston Pins
6 Snap Rings
3 Rod Bushings
Set Rings For 3 Pistons, STD
1 Set of Main Bearings
1 Set of Rod Bearings
1 Set of Thrust Bearings
6 Valve Guides
