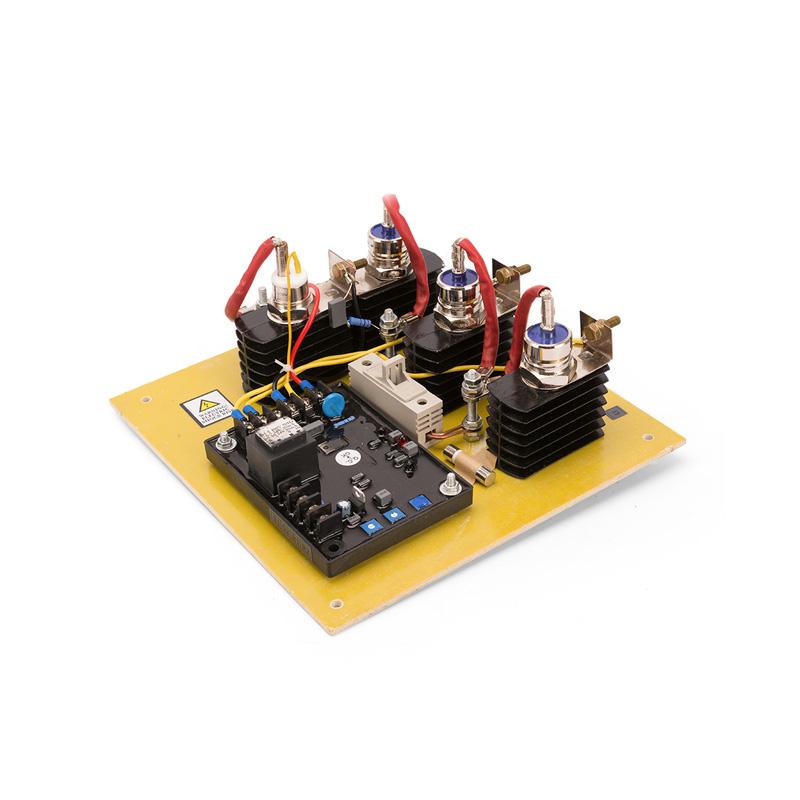

SAVRL-75A AVR Automatic Voltage Regulator for Brushless Generator

Brushless SAVRL-75A AVR Automatic Voltage Regulator for Brushless Generator

Part Number:
SAVRL-75A,SAVRL75A

Details:
Generator Brushless SAVRL-75A AVR Automatic Voltage Regulator SAVRL-75A AVR for Genset: applicable to Brushless & Brush Generator

Technical parameter:
Voltage build-up: voltage build-up automatically when the residual magnetism>4V25Hz
Input ?/strong>
Voltage ?90-264V ac
Frequency:50-60 HZ nominal
Output: DC 50A 150V
Frequency compensation: the output voltage will decline when the inside motor slows down to protect the circuit
Adjustment rate: >1%
