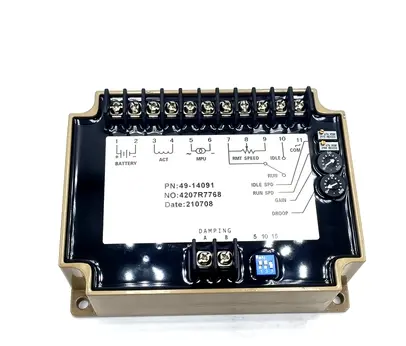

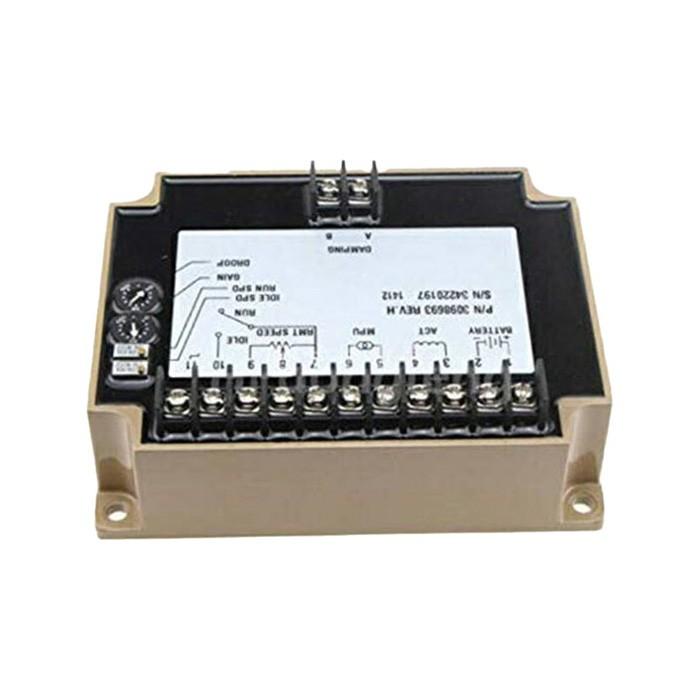

Speed Controller EFC 4914091 for Generator Cummins Governor Speed Control Unit

Speed Controller EFC 4914091 for Generator Cummins Governor Speed Control Unit

Part Number:
4914091

Applications:
For Generator Cummins Governor Speed Control Unit
SPECIFICATION:
RPM Stability:
Speed Range:1KHz-6.5KHz
Thermal stability:Max 0.7%
IDLE Regulation:260 20Hz
DROOP Regulation:
Minimum 15Hz 6Hz/ 1 Amp
Maximum:400Hz 75Hz/ 1 Amp
External Speed Regulation: 200Hz (with 1 K
AUX Input Sensitivity:148Hz / 1V., 10Hz
Impedance:1M
Working Temp Range:-40 - 85
ENVIRONMENT:
Working Humidity Range:Maximum 95%
Stocking Temp:-55 - 92
Shocking:20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage:12V or 24V
Grounding Pole:Negative pole
Power Supply:40mA
Actuator Continuous Current:Minimum 1A,Maximum 4.5A
MPU Signal: 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.

Note:
When placing an order, please contact us with engine /air compressor nameplate so that we can check it (or prepare the operating procedures more accurately for you).
