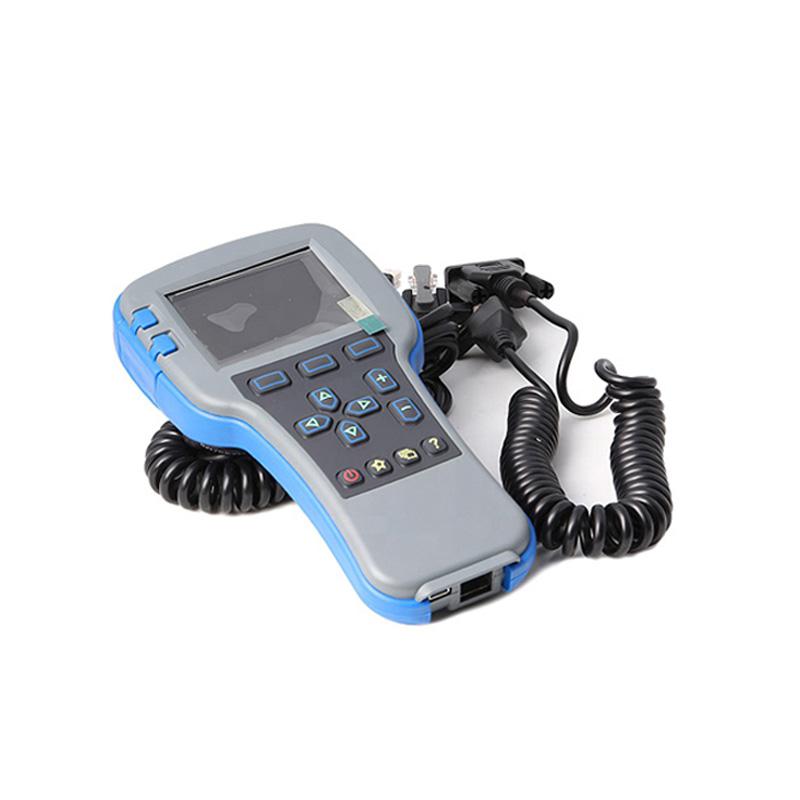

Upgrade Level Handheld Programmer 1311-4401 1313-4401 1313K-4401 1313-4331 1313-4431 for Curtis

Upgrade Level Handheld Programmer 1311-4401 1313-4401 1313K-4401 1313-4331 1313-4431 for Curtis

Application:
for Curtis

Part Number:
1311-4401,1313-4401,1313K-4401,1313-4331,1313-4431

FEATURES:
Large high resolution color display shows multiple parameters simultaneously for quick adjustment.
Backlight for easy viewing in low-light environments. Cloning feature and 64 Mb internal memory allows multiple
parameter files to be stored in the Handheld Programmer, making it easy to transfer settings to other vehicles.
Advanced troubleshooting capabilities for all vehicles that use Curtis programmable motor controllers or control systems.
AA Battery compartment allows programs to be edited without having to be connected to a system.
Multiple language support includes English, German, Spanish, French, and Italian.
Monitoring function allows real-time viewing of controller activity.
Icon based graphical user interface allows for quick and intuitive menu navigation.
Dedicated buttons for elp?and avorites?provide for direct access to commonly used features.
Comprehensive help text offers solutions and information at the touch of a button.
Easily upgradeable via USB to ensure compatibility with future products and features.
The Model 1313 programmer is easily portable, with a tough rubber protective perimeter strip.
Programming kit comes complete with handheld programmer, Molex cable, zippered case, CANopen network DB-9 cable (where applicable), quick start guide.

SPECIFICATIONS:
Model: 1313-4431
Access level: OEM dealer programmer
Operating ambient temp. range: -20C to 50C (-4F to 122F)
Storage ambient temperature range: -40C to 85C (-40F to 185F)
Package environmental rating: IP53 (with programmer cable plugged in and SD-card cover closed)
Package Weight: 0.75 kg
Dimensions (LWH): 190 100 36 mm (7.5" 3.9" 1.4")
Regulatory compliance: CE/RoHS
