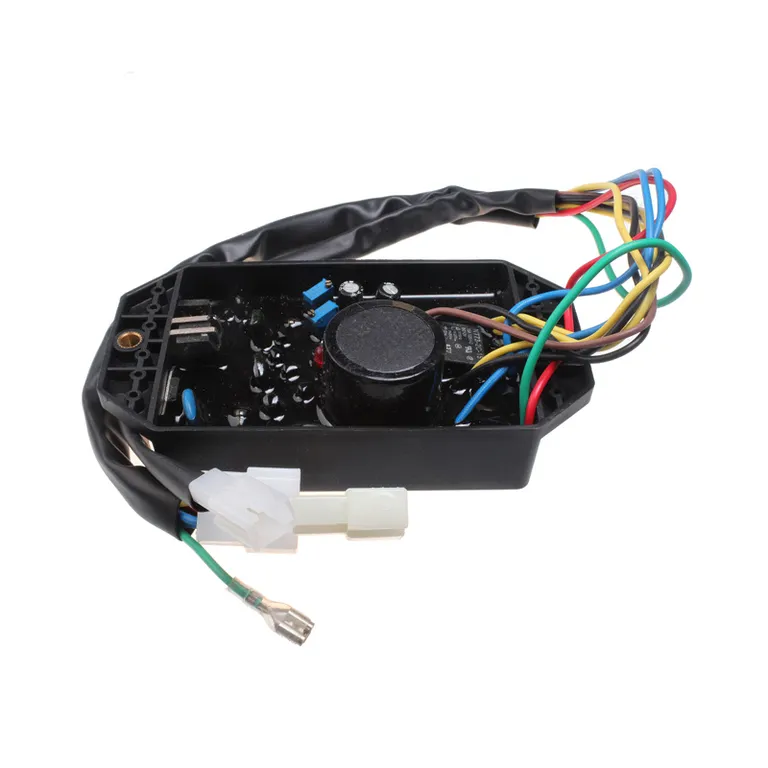

Voltage Regulator KI-DAVR-50S3 for Kipor Generator KDE6700TA3 5KW 3 Phase

Voltage Regulator KI-DAVR-50S3 for Kipor Generator KDE6700TA3 5KW 3 Phase

Part Number:
KI-DAVR-50S3 IDAVR50S3

See Details:
For Kipor Yanmar Generator KDE6700TA3 5KW 3 Phase

The item has 6 connectors, and 14 cables
2 single-wire connectors,2 double-wire
connectors,2 four-wire connectors

Specification:
1.Voltage stale: ?5%.
2.Automatic circuit protection.
3.short-circuit protection, over-current protection,
over-voltage protection, overload protection, PID regulation.

Function:
Output voltage stability ?0.5%.
Inner brainpower integrated circuit control,
automatic circuit protection function.
Over current automatic stop, output voltage over 10%
will automatically stop. Over loading or short circuit
will automatic shutdown function.
Automatic voltage adjustment rate is higher than 1%.
Output: AC380V.
Sensing input: AC150V three phase.
Excited : ac 90~130v.

Application:
AVR for 5kw Kipor,Yanmar,KAMA 3 Phase Diesel Generator.
