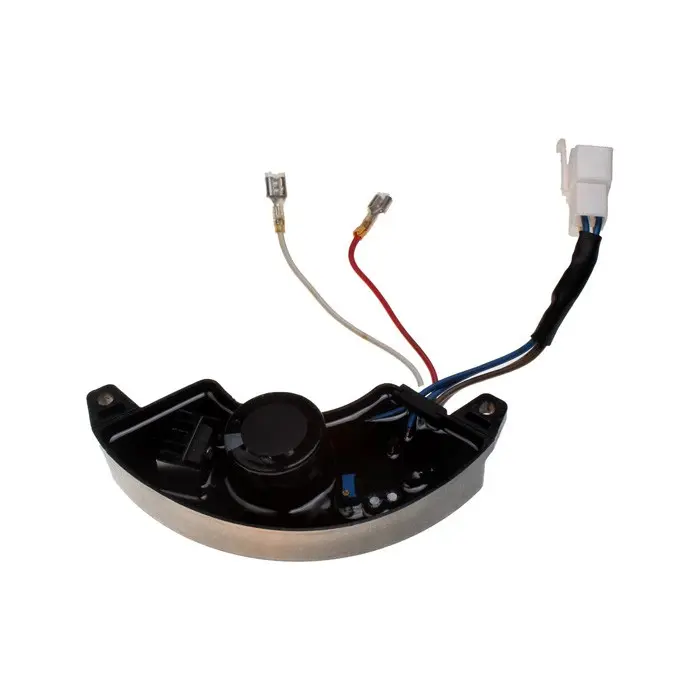

Watt Voltage Regulator AVR 310227001-03T0800514 for Blackmax TTI 7000 8750

Watt Voltage Regulator AVR 310227001-03T0800514 for Blackmax TTI 7000 8750

Part Number:
310227001-03T0800514

Application:

Models:
Blackmax TTI 7000 8750

Details:
It is compatible with Blackmax TTI Part 310227001-03T0800514.
Premium 7KW to 8.5KW Generator Automatic Voltage Regulator(AVR) for Blackmax Branded Portable Gas Generators.
It can handle a maximum surge power of 10KW.
Packing Contents: AVR-310227001-03T0800514.
1) A higher output AVR definitely works perfect on a generator of low power output while on the contrary,
a low power output AVR CAN NOT be used for a generator of higher power output.
2) Most of Replacement AVRs in the market are rated only 5KW and can only handle a maximum power of 6KW.
They are too weak to be used unless the total load of your generator won't exceed 5KW!
3) If our AVR is out of adjustment for your generator, please MANUALLY turn clockwise or counter-clockwise a
small bronze screw in a blue rubber part to reach your desirable power output. Clockwise turning is for increasing
and counter-clockwise turning for decreasing voltage output. If this does not help you out, please contact with us for tech support.
4) A 2-wire capacitor voltage regulator may be installed in your generator.
?
If so, you shall find a compatible generator capacitor in our eBay Store.
Technical Specifications:
1.Maximum Output: DC 90V 3.5A.
2.Excitation Voltage: 90V ~ 100V.
3.Feedback Voltage: 14V ~ 24V with an Average of 18V.
4.Frequency: 50/60Hz.
5.AC Voltage Output: 120V/240V.
6.Auto Voltage Adjusting Accuracy:? 1%.
7.Maximum Temperature Rise: 130C or 266F.
8.Continuous Working Time: 20 Hours.
9.Installation-Center Distance: 140 1mm (about 5.5 in).
