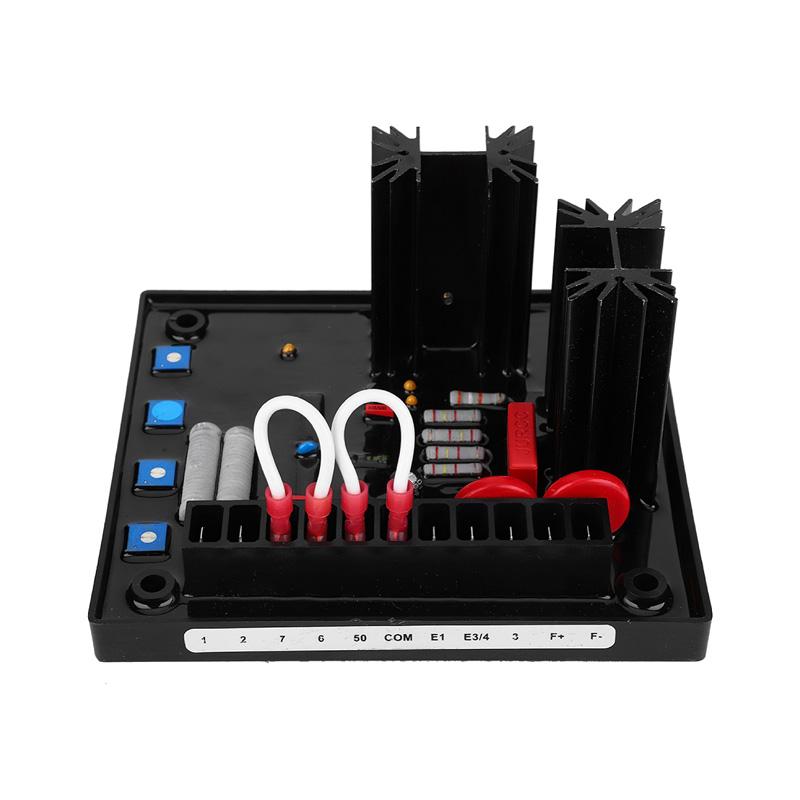

Automatic Voltage Regulator AVR AVC63-7F for Generator Genset

Basler Automatic Voltage Regulator AVR AVC63-7F for Generator Genset

Part Number:
AVC63-7F,AVC637F

Details:
Introduction: Basler electric AVC63-7F voltage regulator is to control the conventional 50/60Hz brushless exciter generator exciting winding of voltage (rated output 63VDC) to adjust the output voltage of the generator. Send motor output voltage regulator detection, converted to a dc signal after comparing with a reference voltage signal, after processing is used to control deviation signal exciter excitation winding, in order to maintain the output of the generator voltage stability.

Specification:
Apply to the autonomous brushless generator
Compatible with Basler AVC63-7, AVC63-7F
(This product is not a factory product Basler but with the incompatible)
Power input:???? 190? TO? 277VAC,?? 50/60Hz. 900VA
Sensing? input:???? 190? TO? 240VAC/380? TO? 480VAC, 0.2VA
Paralleling input:? 5AAC,? 50/60Hz.? 2.5VA
Output:?? 63VDC,?? 7ADC

Brushless AVR: AVC63-7FSensing

Voltage:
220(170-264)VAC / 400(380-480)VAC 1 phase 2 wireFrequency:50-60Hz nominal voltage input:170-305VAC single phase power output

Voltage:
max 63VDC at 207VAC input current:continuous 7A , intermittent 10A for 10 secs Regulation:+/-1% RMS with 4% engine governingVoltage build-up:residual voltage at avr terminal 5VACExternal Voltage Adjustment:+/-8% with 1k ohm 1 watt trimmer

TYPE:
brushless compatible:BaslerGenerator

Power:
64-500kw
