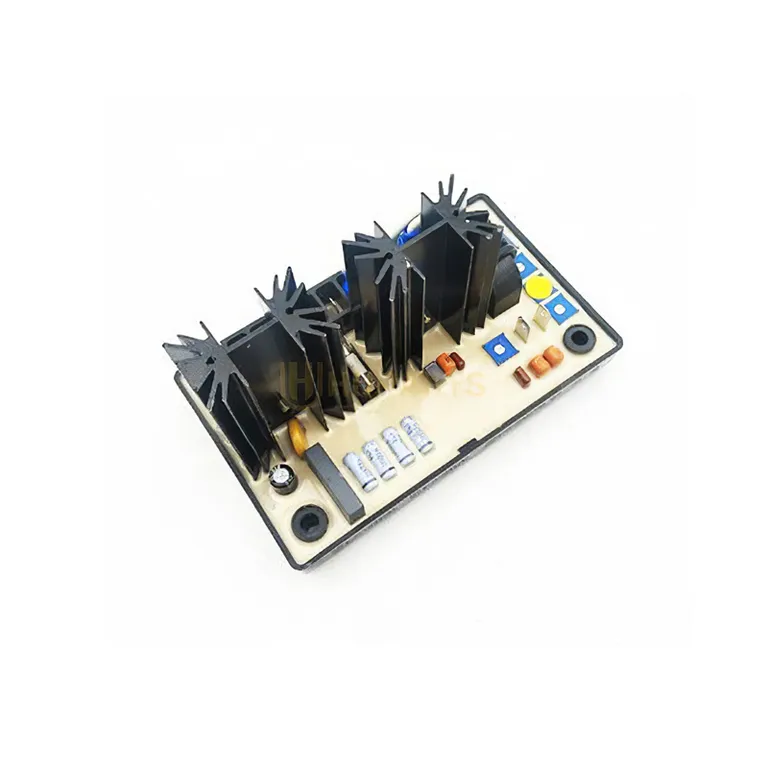

Automatic Voltage Regulator AVR SMAVC6307FA for Maggot Generator

Automatic Voltage Regulator AVR SMAVC6307FA for Maggot Generator

Part Number:
SMAVC6307FA

Applications:
For Maggot Generator Electrical Specifications:DC power output: at 230Vac input, the maximum continuous output is 63Vdc, 7Adc.DC resistance of exciter field winding: minimum 9.0Ω.AC power input: l70 uff5e 277Vac, single phase, 50 / 60Hz.Power consumption: at 200Vac input, maximum 900VA.AC detection

Voltage:
190-240Vac, single phase, 50 / 60Hz.Power consumption: 5VA.Voltage adjustment range: The internal voltage adjustment range is 340 ~ 528Vac.Position adjusted according to internal voltage, terminals 7,6:External voltage adjustment range is ± 10% of rated value (external 1.5KΩ / 1W adjustable resistor);Can also be added (A1, A2 terminals) ± 5Vdc(Must be a power signal isolated from the other terminals connected to this voltage regulator. The voltage rises when A1 is positive and A2 is negative)± 5% adjustable (adjustable WT adjustable resistance).Adjustment accuracy: ± 0.25%.Voltage drift: When the temperature changes by 50 ° C, the voltage drift is
