Controller DSE8610 MKII for Deep Sea Electronics Deep Sea Module

Controller DSE8610 MKII for Deep Sea Electronics Deep Sea Module

Part Number:

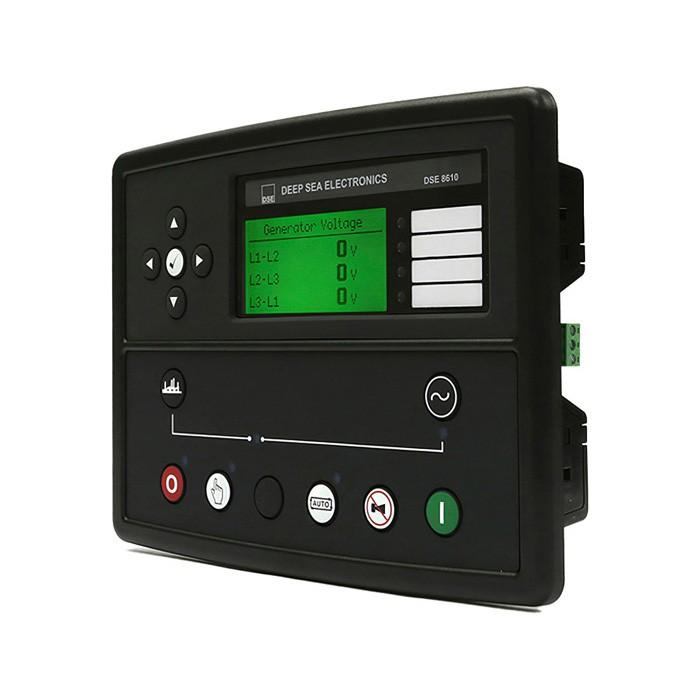

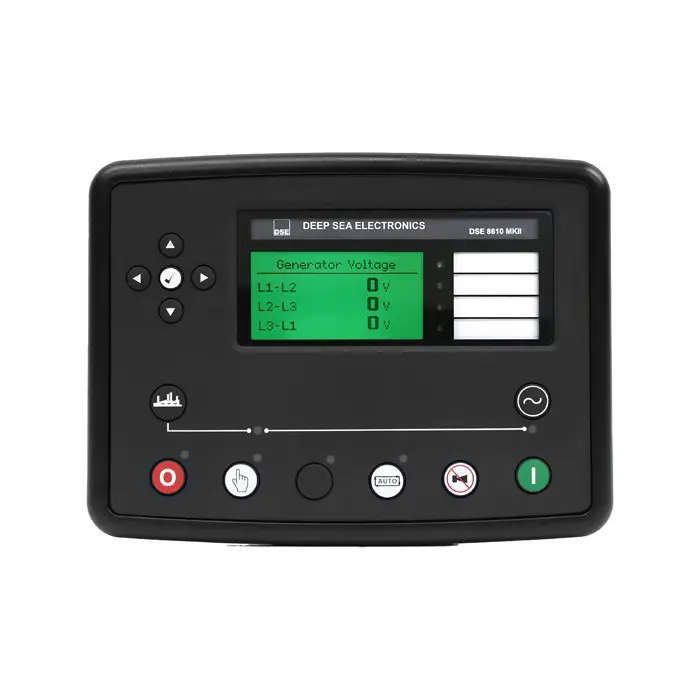

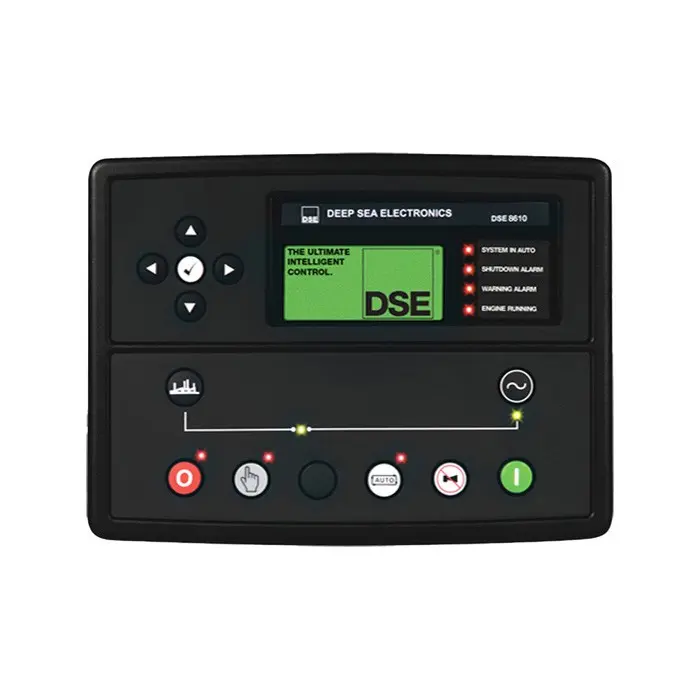

DSE8610 MKII,DSE8610MKII The DSE8610 MKII represents the latest in complex load sharing synchronising control technology. Designed to handle the most complex grid type generator Applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.

Specification:
OVERALL SIZE245 mm x 184 mm x 51 mm (9.6u2033 x 7.2u2033 x 2.0u2033) PANEL CUTOUT SIZE220 mm x 160 mm (8.7u2033 x 6.3u2033) MAXIMUM PANEL THICKNESS8.0 mm (0.3u2033) PRODUCT VARIANTS8610-02 u2013 8610 MKII Synchronising Load Sharing Control Module (Ct, Rtc) DC SUPPLYCONTINUOUS VOLTAGE RATING8 V to 35 V continuous CRANKING DROPOUTSAble to survive for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries MAXIMUM OPERATING CURRENT460 mA at 12 V, 245 mA at 24 V MAXIMUM STANDBY CURRENT375 mA at 12 V, 200 mA at 24 V CHARGE FAIL/EXCITATION RANGE0 V to 35 V OUTPUTSOUTPUT A (FUEL)15 A DC at supply voltage OUTPUT B (START)15 A DC at supply voltage OUTPUTS C D8 A AC at 250 V AC (Volt free) AUXILIARY OUTPUTS E,F,G,H,I J2 A DC at supply voltage GENERATOR BUSVOLTAGE RANGE15 V to 415 V AC (Ph to N)25 V to 719 V AC (Ph to Ph) FREQUENCY RANGE3.5 Hz to 75 Hz MAGNETIC PICK-UPVOLTAGE RANGE+/- 0.5 V to 70 V FREQUENCY RANGE10,000 Hz (max) BUILT-IN GOVERNOR CONTROLMINIMUM LOAD IMPEDANCE1000u03a9Fully isolated GAIN VOLTAGE0 V to 10 V DCFully isolated OFFSET VOLTAGE+/- 10 V DCFully isolated BUILT-IN AVR CONTROLMINIMUM LOAD IMPEDANCE1000u03a9Fully isolated GAIN VOLTAGE0 V to 10 V DCFully isolated OFFSET VOLTAGE+/- 10 V DCFully isolated
